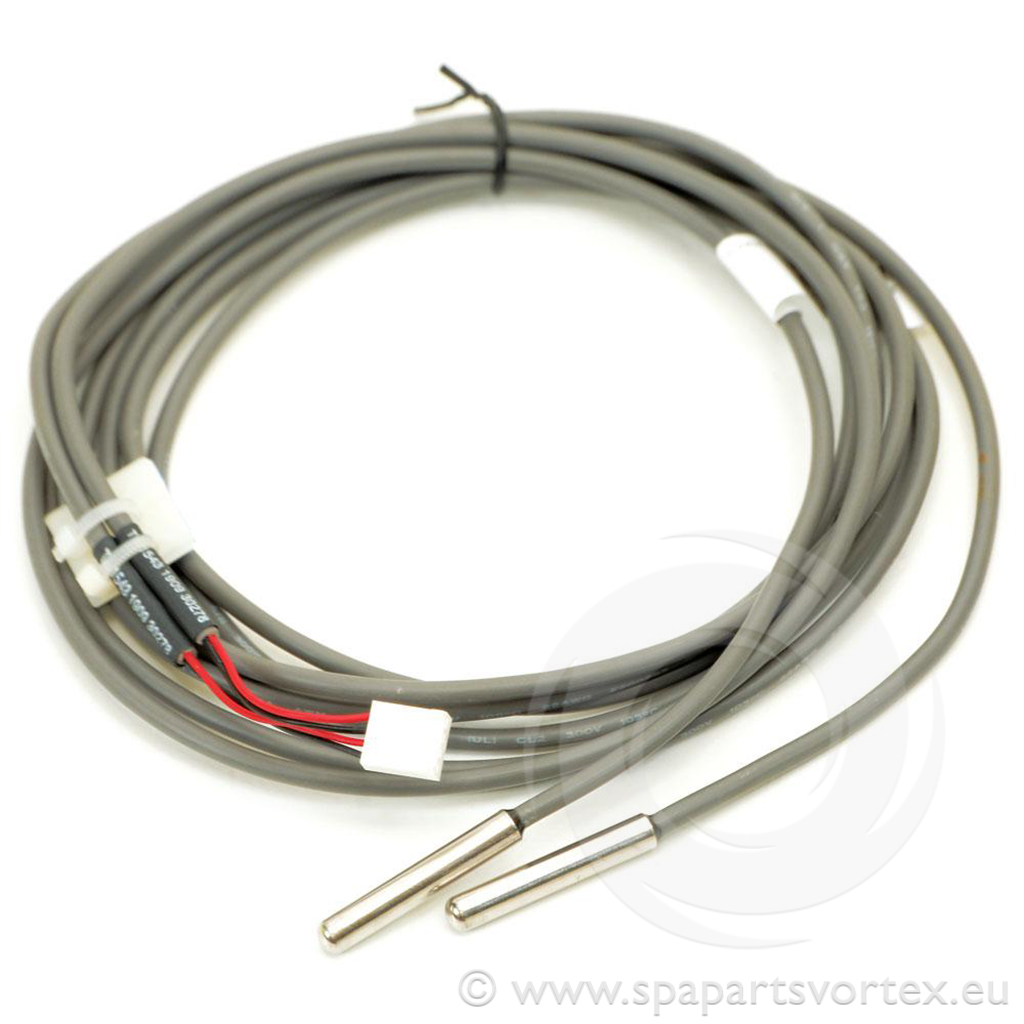

Balboa Double Sensor Harness 30278
Product Description
Assembly includes two probes that slide into their holders. The flat plastic plug connects directly to the PCB.
Temperature probe diameter: 6 mm. Temperature cable length: 2438 mm (96 inches).
Hi-limit probe diameter: 6 mm. Hi-limit cable length: 787 mm (31 inches).
Commonly used in smaller Balboa applications.
The longer lead sensor reads the temperature and is placed in the spa, while the shorter lead sensor serves as the hi-limit sensor, located at the back of the heater.
Part numbers: The assembly consists of two parts, each with its own part number, but the combined sensor assembly is identified by part number 30278.
Temperature probe diameter: 6 mm. Temperature cable length: 2438 mm (96 inches).
Hi-limit probe diameter: 6 mm. Hi-limit cable length: 787 mm (31 inches).
Commonly used in smaller Balboa applications.
The longer lead sensor reads the temperature and is placed in the spa, while the shorter lead sensor serves as the hi-limit sensor, located at the back of the heater.
Part numbers: The assembly consists of two parts, each with its own part number, but the combined sensor assembly is identified by part number 30278.
Product Attributes
| Brand: Balboa |
| Product Type: Sensor Probe |
| Model / Series: Pre M7 |
| Sensor Function: Temp & Hi Limit |
Product Attributes
| Brand: Balboa |
| Product Type: Sensor Probe |
| Model / Series: Pre M7 |
| Sensor Function: Temp & Hi Limit |
Product Description
Assembly includes two probes that slide into their holders. The flat plastic plug connects directly to the PCB.
Temperature probe diameter: 6 mm. Temperature cable length: 2438 mm (96 inches).
Hi-limit probe diameter: 6 mm. Hi-limit cable length: 787 mm (31 inches).
Commonly used in smaller Balboa applications.
The longer lead sensor reads the temperature and is placed in the spa, while the shorter lead sensor serves as the hi-limit sensor, located at the back of the heater.
Part numbers: The assembly consists of two parts, each with its own part number, but the combined sensor assembly is identified by part number 30278.
Temperature probe diameter: 6 mm. Temperature cable length: 2438 mm (96 inches).
Hi-limit probe diameter: 6 mm. Hi-limit cable length: 787 mm (31 inches).
Commonly used in smaller Balboa applications.
The longer lead sensor reads the temperature and is placed in the spa, while the shorter lead sensor serves as the hi-limit sensor, located at the back of the heater.
Part numbers: The assembly consists of two parts, each with its own part number, but the combined sensor assembly is identified by part number 30278.
