Balboa Niagara 3HP 2spd Pump

https://spaparts.glodo.cloud/web/image/product.template/201/image_1920?unique=37b335d

Not Available For Sale

  • Brand
  • Product Type
  • Plumbing Connection
  • HP
  • Length
  • Width
  • Power kW
  • Height
  • Speeds

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description

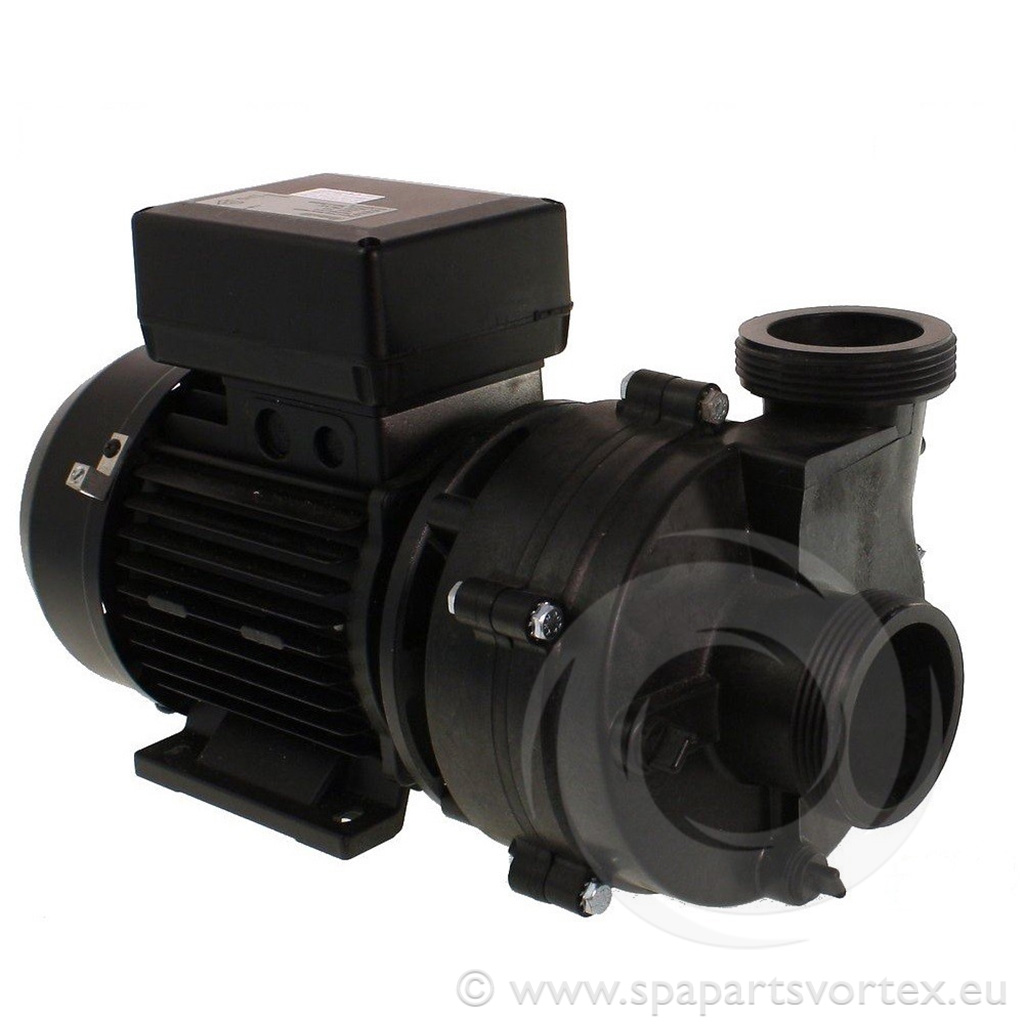

Balboa Niagara 3 HP Two-Speed Pump

Specifications:

  • Power Supply: 230 V, 50 Hz
  • Motor Power: 3.0 HP
  • Current Draw: 2.5 A (low speed), 11.5 A (high speed)
  • Rotational Speed: 1,425 RPM (low speed), 2,875 RPM (high speed)
  • Plumbing Connections: 2-inch suction and discharge ports (78 mm outer diameter)
  • Electrical Connections: Supplied with a 4-core cable and AMP plug

Features:

  • Wet End Configuration: Center suction with radial side discharge; rotatable to 3, 9, or 12 o'clock positions
  • Motor Protection: Totally Enclosed Fan Cooled (TEFC) motor
  • Compatibility: Direct replacement for Vico Ultrajet, Ultimax, and Sta-Rite pumps
  • Applications: Commonly used in spa brands such as Hydropool, Canadian Spa, Master Spa, Elite Spas, and Dimension One

Product Attributes
Brand: Balboa
Product Type: Massage Pump
Plumbing Connection: 2"
HP: 3.0 HP
Length: 459 mm
Width: 203 mm
Power kW: 2.2 kW
Height: 203 mm
Speeds: 2 speed
