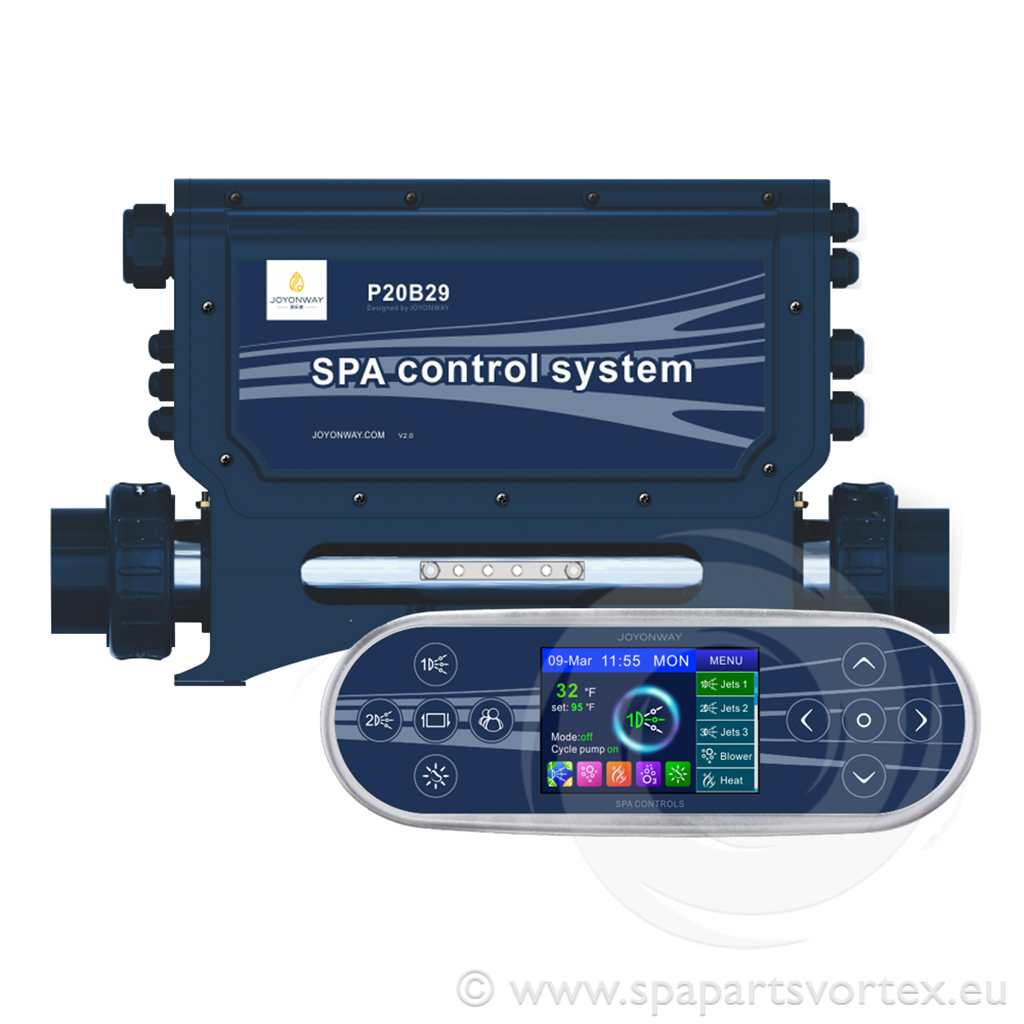

Pack Joyonway P20B29 + PB553

https://spaparts.glodo.cloud/web/image/product.template/917/image_1920?unique=0a934c1

Not Available For Sale

  • Brand
  • Product Type
  • Max Pumps
  • Power kW
  • Circ Pump
  • Blower
  • Total Comp. Relays
  • Heater Size

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description
Dimensions: Length: 434 mm (inc heater) 360 mm (box only) Width: 82 mm Height: 278 mm

Volts: 230vac Hz: 50.
Pump 1: Dual speed pump or Single speed if circulation pump used.
Pump 2 or Blower: Single speed
Heater: x 1 (3kW)
Ozone: x1
Light: x1
Connections: 2-inch socket heater union sleeves.
Topside Buttons: JETS1, JETS2, FLIP, MODE, LIGHT, NAVIGATION AND CONFIRM BUTTONS
Items Included: Joyonway P20B29 and Joyonway Topside PB553

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
Product Attributes
Brand: Joyonway
Product Type: Box and Panel Bundle
Max Pumps: 1
Power kW: 3.0kW
Circ Pump: Yes
Blower: Yes
Total Comp. Relays: 3
Heater Size: 2 Inch
Product Attributes
Brand: Joyonway
Product Type: Box and Panel Bundle
Max Pumps: 1
Power kW: 3.0kW
Circ Pump: Yes
Blower: Yes
Total Comp. Relays: 3
Heater Size: 2 Inch
Product Description
Dimensions: Length: 434 mm (inc heater) 360 mm (box only) Width: 82 mm Height: 278 mm

Volts: 230vac Hz: 50.
Pump 1: Dual speed pump or Single speed if circulation pump used.
Pump 2 or Blower: Single speed
Heater: x 1 (3kW)
Ozone: x1
Light: x1
Connections: 2-inch socket heater union sleeves.
Topside Buttons: JETS1, JETS2, FLIP, MODE, LIGHT, NAVIGATION AND CONFIRM BUTTONS
Items Included: Joyonway P20B29 and Joyonway Topside PB553

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
