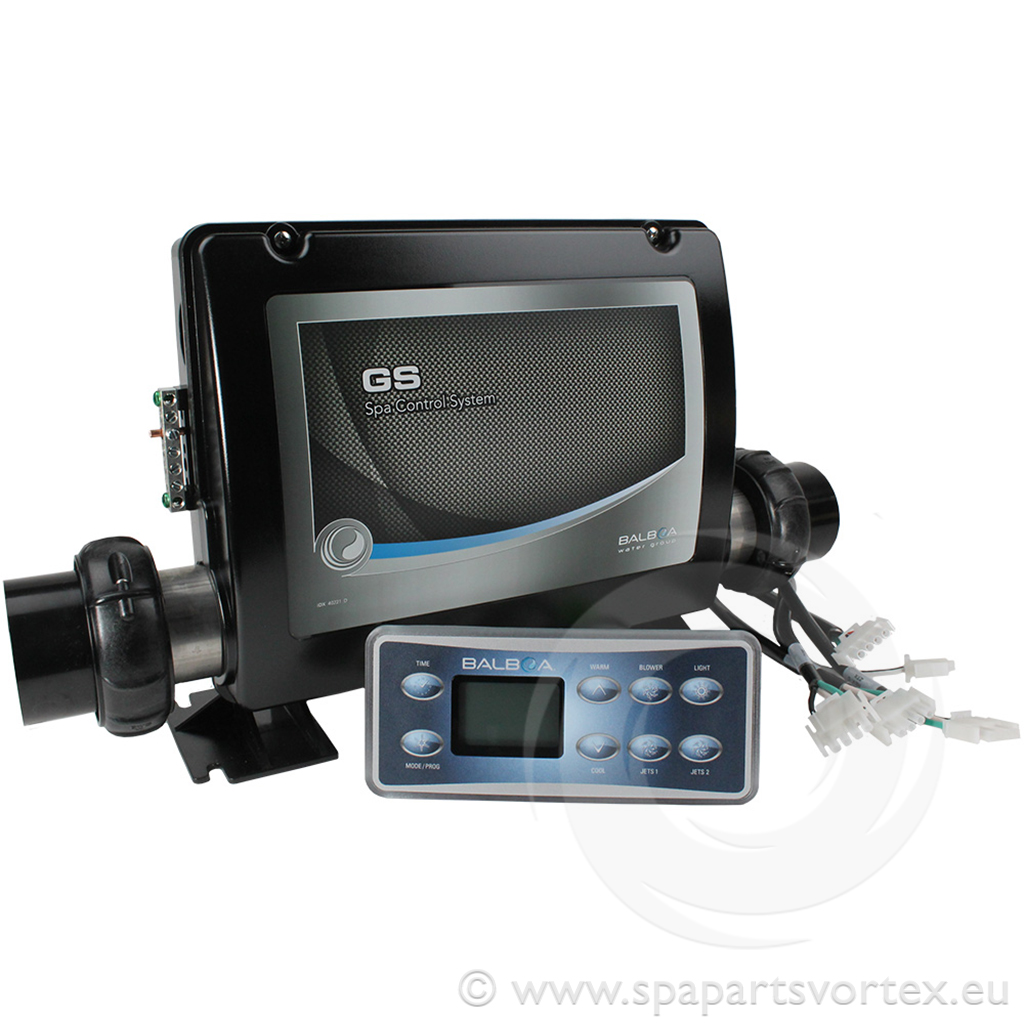

Balboa GS523DZ + VL801D
Product Description
Balboa GS523DZ Control System is a spa control system designed to manage advanced configurations with multiple pumps and auxiliary components.
System Features:
- Pump Support:
- Pump 1: Single or dual-speed, with an optional circulation pump
- Pump 2: Single-speed
- Pump 3: Single-speed
- Additional Outputs:
- Air Blower: Optional (1 unit)
- Ozone: 1 connection
- Light: 12V
- Heater: 3 kW
Topside Buttons: Warm, Cool, Blower, Mode, Jets 1, Jets 2, and Light
Dimensions:
- Control Box:
- Length (including heater): 500 mm (19.69 inch)
- Length (box only): 320 mm (12.60 inch)
- Width: 120 mm (4.72 inch)
- Height: 270 mm (10.63 inch)
- Topside Panel:
- Dimensions: 187 mm (7.36 inch) x 83 mm (3.27 inch)
Items Included:
- Balboa GS523DZ control box
- Balboa VL801D topside control
- Balboa VL801D Overlay
Box Quantity: Sold individually.
Product Attributes
| Product Type : Control Sytem Bundle |
| Brand : Balboa |
| Max Length : 420mm |
| Max Height : 270mm |
| Max Pumps : 3 |
| Power kW : 3.0kW |
| Circ Pump : Yes |
| Blower : Yes |
| Max Depth : 100mm |
| Total Comp. Relays : 5 |
| Plumbing Size : 2" |
Product Attributes
| Product Type : Control Sytem Bundle |
| Brand : Balboa |
| Max Length : 420mm |
| Max Height : 270mm |
| Max Pumps : 3 |
| Power kW : 3.0kW |
| Circ Pump : Yes |
| Blower : Yes |
| Max Depth : 100mm |
| Total Comp. Relays : 5 |
| Plumbing Size : 2" |
Product Description
Balboa GS523DZ Control System is a spa control system designed to manage advanced configurations with multiple pumps and auxiliary components.
System Features:
- Pump Support:
- Pump 1: Single or dual-speed, with an optional circulation pump
- Pump 2: Single-speed
- Pump 3: Single-speed
- Additional Outputs:
- Air Blower: Optional (1 unit)
- Ozone: 1 connection
- Light: 12V
- Heater: 3 kW
Topside Buttons: Warm, Cool, Blower, Mode, Jets 1, Jets 2, and Light
Dimensions:
- Control Box:
- Length (including heater): 500 mm (19.69 inch)
- Length (box only): 320 mm (12.60 inch)
- Width: 120 mm (4.72 inch)
- Height: 270 mm (10.63 inch)
- Topside Panel:
- Dimensions: 187 mm (7.36 inch) x 83 mm (3.27 inch)
Items Included:
- Balboa GS523DZ control box
- Balboa VL801D topside control
- Balboa VL801D Overlay
Box Quantity: Sold individually.
