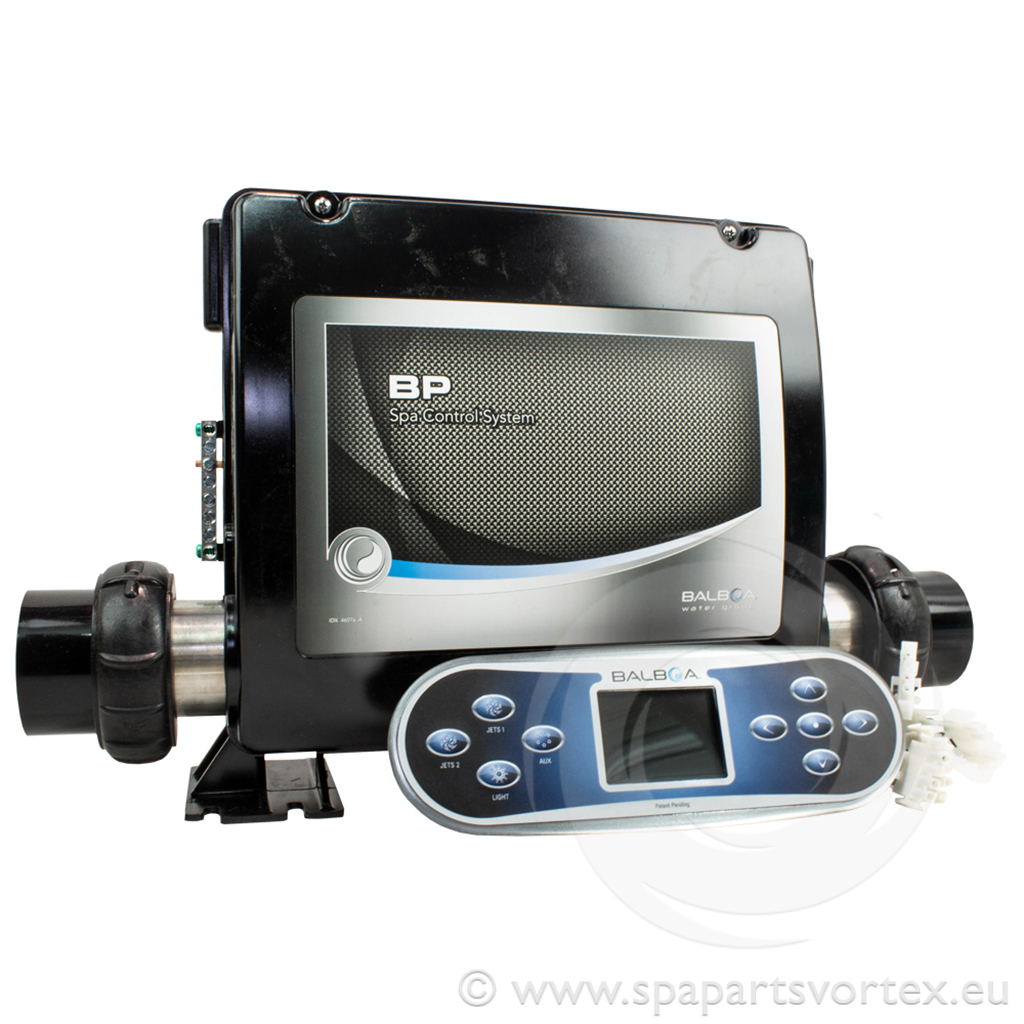

BP2100G1 + TP700
Product Description
The Balboa BP2100G1 + TP700 Control System (3kW) is a powerful and flexible solution for advanced spa setups, supporting multiple pumps, an air blower, ozone, and lighting. The system includes the BP2100 control box and TP700 topside control, offering intuitive operation and configurability for complex spa configurations. A J17 port allows for running either an air blower or an additional single-speed pump, while systems with three pumps and a blower require a splitter cable (SKU: CA-CS893). This system is ideal for sophisticated spa configurations, offering programmable filtration cycles and advanced output options.
Dimensions:
- Control Box:
- Length (including heater): 500 mm (19.69 inches)
- Length (box only): 330 mm (12.99 inches)
- Width: 120 mm (4.72 inches)
- Height: 300 mm (11.81 inches)
- Topside Panel:
- Length: 250 mm (9.84 inches)
- Height: 90 mm (3.54 inches)
Topside Buttons:
- Jets 1, Jets 2, Aux, Light, Up, Left, Select, Right, Down
System Outputs:
- Pump 1: 230VAC, 2-Speed (12A max), with 15-minute timers for high and low speed
- Pump 2: 230VAC, 2-Speed (12A max), configurable depending on setup
- Pump 3: 230VAC, 2-Speed (12A max), configurable depending on setup
- Blower: 230VAC, 1-Speed (4A max), with a 15-minute timer
- Circulation Pump: 230VAC, 1-Speed (2A max), programmable filtration cycles and polling
- Ozone: 230VAC (0.5A max), slaved to the circulation pump or independent depending on setup
- Spa Light: 10VAC (1A max), with a 240-minute timer
- A/V (Stereo): 230VAC (5A max), always on
- Heater: 3.0kW @ 240VAC max
Items Included:
- Balboa BP2100 control box
- TP700 topside control
Box Quantity: Sold individually.
Product Attributes
| Product Type: Control Sytem Bundle |
| Brand: Balboa |
| Max Length: 490mm |
| Max Height: 295mm |
| Max Pumps: 3 |
| Power kW: 3.0kW |
| Circ Pump: Yes |
| Blower: Yes |
| Max Depth: 110mm |
| Total Comp. Relays: 5 |
| Plumbing Size: 2" |
