BP6013G1 + TP600
Product Description

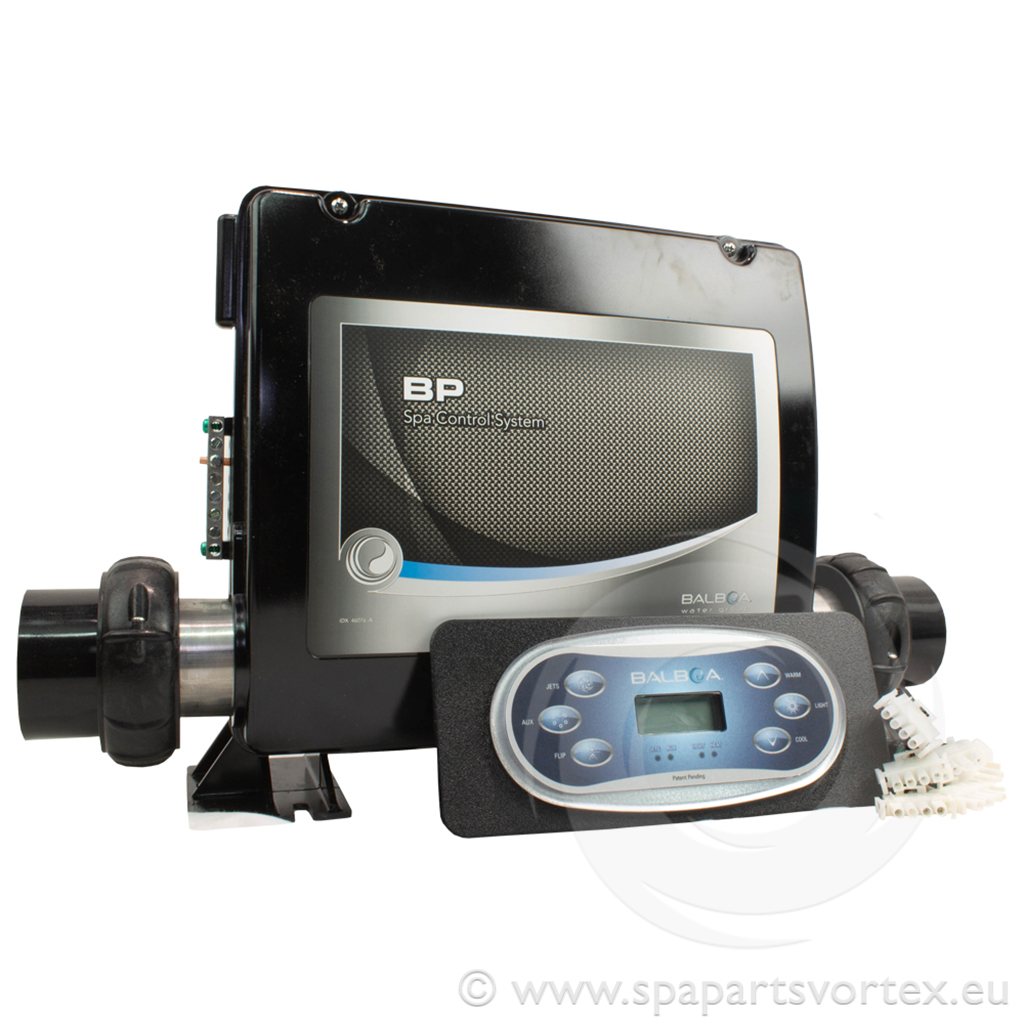

The Balboa BP6013G1 + TP600 Control System is a versatile and configurable solution for spa setups, featuring the BP6013G1 control box and TP600 topside panel. It offers flexible output configurations to support different pump and blower setups and is WiFi-ready for remote operation when paired with a compatible receiver. The system is compact and includes intuitive controls for seamless operation.
Dimensions:
- Control Box:
- Length (including heater): 500 mm (19.69 inches)
- Length (box casing only): 320 mm (12.60 inches)
- Width: 120 mm (4.72 inches)
- Height: 300 mm (11.81 inches)
- Topside Panel:
- Length: 178 mm (7.01 inches)
- Height: 86 mm (3.39 inches)
Topside Buttons:
- JETS, AUX, FLIP, WARM, LIGHT, COOL
System Outputs (Configurable):
- No Circulation Pump (CP=no):
- Option 1: P1=2-speed, P2=1-speed, P3=no, BL=no
- Option 2: P1=2-speed, P2=no, P3=no, BL=yes
- Option 3: P1=2-speed, P2=no, P3=no, BL=no
- With Circulation Pump (CP=yes):
- Option 1: P1=1-speed, P2=1-speed, P3=no, BL=no
- Option 2: P1=1-speed, P2=no, P3=no, BL=yes
- Option 3: P1=1-speed, P2=no, P3=no, BL=no
Items Included:
- Balboa BP6013G1 control box
- TP600 topside panel
Box Quantity: Sold individually.
Product Attributes
| Product Type: Control Sytem Bundle |
| Brand: Balboa |
| Max Length: 490mm |
| Max Height: 270mm |
| Max Pumps: 2 |
| Power kW: 3.0kW |
| Circ Pump: Yes |
| Blower: Yes |
| Max Depth: 100mm |
| Total Comp. Relays: 4 |
| Plumbing Size: 2" |
Product Attributes
| Product Type: Control Sytem Bundle |
| Brand: Balboa |
| Max Length: 490mm |
| Max Height: 270mm |
| Max Pumps: 2 |
| Power kW: 3.0kW |
| Circ Pump: Yes |
| Blower: Yes |
| Max Depth: 100mm |
| Total Comp. Relays: 4 |
| Plumbing Size: 2" |
Product Description
The Balboa BP6013G1 + TP600 Control System is a versatile and configurable solution for spa setups, featuring the BP6013G1 control box and TP600 topside panel. It offers flexible output configurations to support different pump and blower setups and is WiFi-ready for remote operation when paired with a compatible receiver. The system is compact and includes intuitive controls for seamless operation.
Dimensions:
- Control Box:
- Length (including heater): 500 mm (19.69 inches)
- Length (box casing only): 320 mm (12.60 inches)
- Width: 120 mm (4.72 inches)
- Height: 300 mm (11.81 inches)
- Topside Panel:
- Length: 178 mm (7.01 inches)
- Height: 86 mm (3.39 inches)
Topside Buttons:
- JETS, AUX, FLIP, WARM, LIGHT, COOL
System Outputs (Configurable):
- No Circulation Pump (CP=no):
- Option 1: P1=2-speed, P2=1-speed, P3=no, BL=no
- Option 2: P1=2-speed, P2=no, P3=no, BL=yes
- Option 3: P1=2-speed, P2=no, P3=no, BL=no
- With Circulation Pump (CP=yes):
- Option 1: P1=1-speed, P2=1-speed, P3=no, BL=no
- Option 2: P1=1-speed, P2=no, P3=no, BL=yes
- Option 3: P1=1-speed, P2=no, P3=no, BL=no
Items Included:
- Balboa BP6013G1 control box
- TP600 topside panel
Box Quantity: Sold individually.
