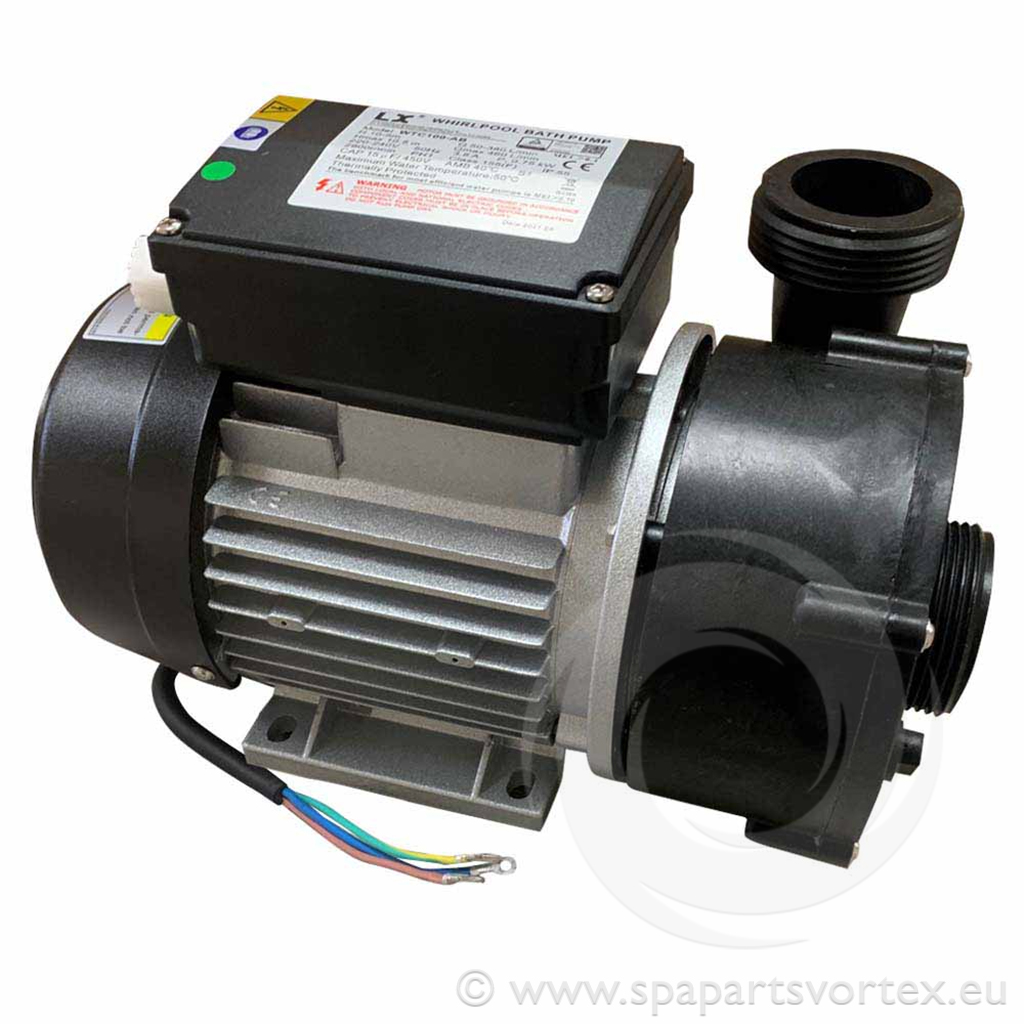

LX WTC100 Pump 1HP

https://spaparts.glodo.cloud/web/image/product.template/1158/image_1920?unique=3eb0aeb

Not Available For Sale

  • Brand
  • Product Type
  • Plumbing Connection
  • Power kW
  • HP
  • Length
  • Width
  • Height

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description


LX WTC100 Circulation Pump 1.0 HP – Technical Specifications

The LX WTC100 is a single-speed, 1.0 HP circulation pump designed for hot tubs and whirlpool baths. Its compact design and efficient performance make it suitable for various spa systems.

Specifications:

  • Power Supply: 230 V, 50 Hz
  • Motor Power: 1.0 HP (0.75 kW)
  • Current Draw: 3.8 A
  • Capacitor: 7 µF
  • Plumbing Connections: 1.5-inch suction and discharge ports
  • Dimensions: Length: 290 mm; Height: 200 mm; Depth: 160 mm

Features:

  • Design: Centre suction with self-draining capability
  • Construction: Thermally protected motor
  • Compatibility: Commonly used in Chinese-manufactured spas

This pump is a reliable and efficient choice for water circulation in spa and whirlpool systems.

Product Attributes
Brand: LX
Product Type: Circulation Pump
Plumbing Connection: 1.5"
Power kW: 0.75 kW
HP: 1.0 HP
Length: 290 mm
Width: 160 mm
Height: 200 mm
