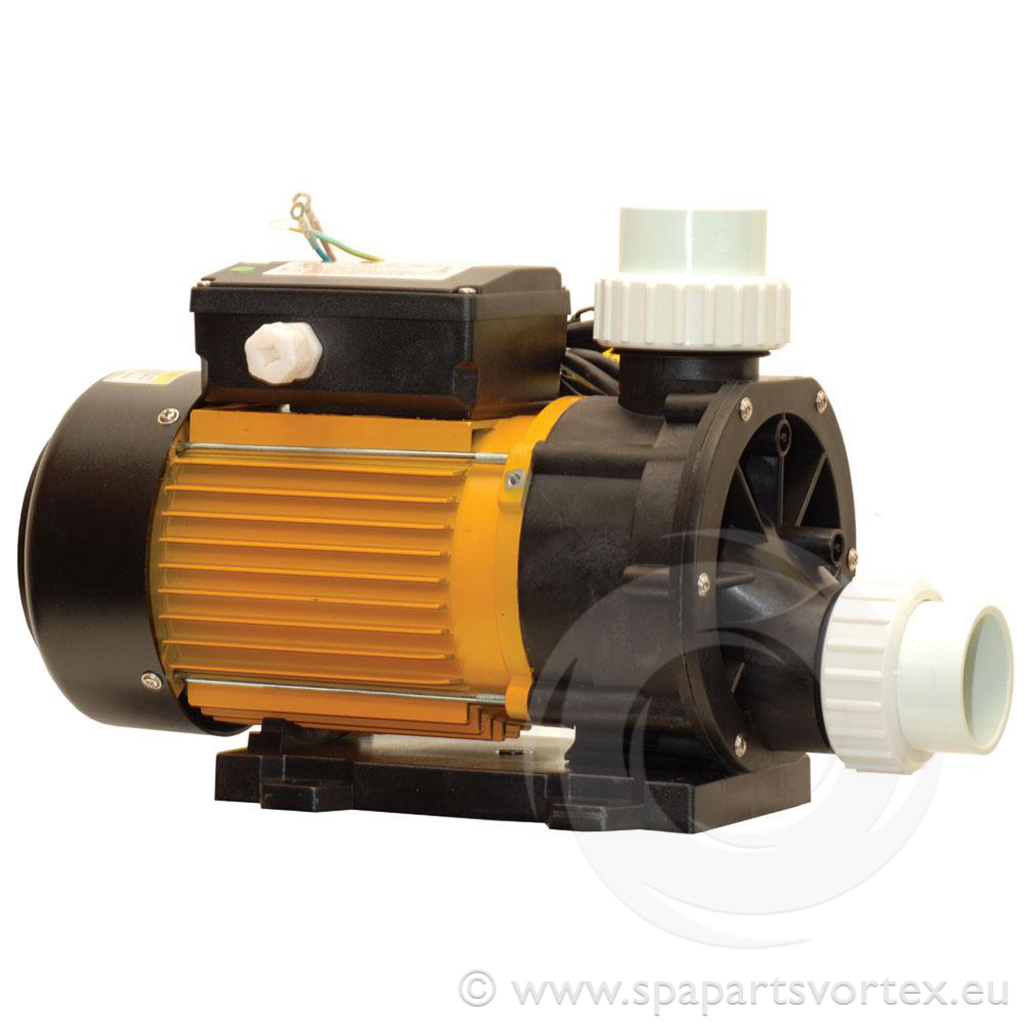

LX TDA75 Circulation Pump 0.75HP
Product Description
LX TDA75 Circulation Pump 0.75 HP
The LX TDA75 is a single-speed, 0.75 HP circulation pump designed for hot tubs and whirlpool baths. It is commonly used in various spa brands, including Chinese-manufactured models.
Specifications:
- Motor Power: 0.75 HP (0.55 kW)
- Current Draw: 3.2 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
Features:
- Design: Center discharge with self-draining capability
- Construction: Thermally protected motor with a 10 µF capacitor
- Performance: Maximum flow rate of 250 L/min; maximum head of 12 m
- Compatibility: Commonly used in Chinese spas, including AMC Winer, Cascade, MAAX, Monalisa, Trinity, and Spa Serve
This pump ensures efficient and reliable operation in spa and whirlpool systems.
Product Attributes
| Brand: LX |
| Product Type: Circulation Pump |
| Plumbing Connection: 1.5" |
| HP: 0.75 HP |
| Length: 350 mm |
| Width: 160 mm |
| Power kW: 0.55 kW |
| Height: 205 mm |
Product Attributes
| Brand: LX |
| Product Type: Circulation Pump |
| Plumbing Connection: 1.5" |
| HP: 0.75 HP |
| Length: 350 mm |
| Width: 160 mm |
| Power kW: 0.55 kW |
| Height: 205 mm |
Product Description
LX TDA75 Circulation Pump 0.75 HP
The LX TDA75 is a single-speed, 0.75 HP circulation pump designed for hot tubs and whirlpool baths. It is commonly used in various spa brands, including Chinese-manufactured models.
Specifications:
- Motor Power: 0.75 HP (0.55 kW)
- Current Draw: 3.2 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
Features:
- Design: Center discharge with self-draining capability
- Construction: Thermally protected motor with a 10 µF capacitor
- Performance: Maximum flow rate of 250 L/min; maximum head of 12 m
- Compatibility: Commonly used in Chinese spas, including AMC Winer, Cascade, MAAX, Monalisa, Trinity, and Spa Serve
This pump ensures efficient and reliable operation in spa and whirlpool systems.
