Product Description

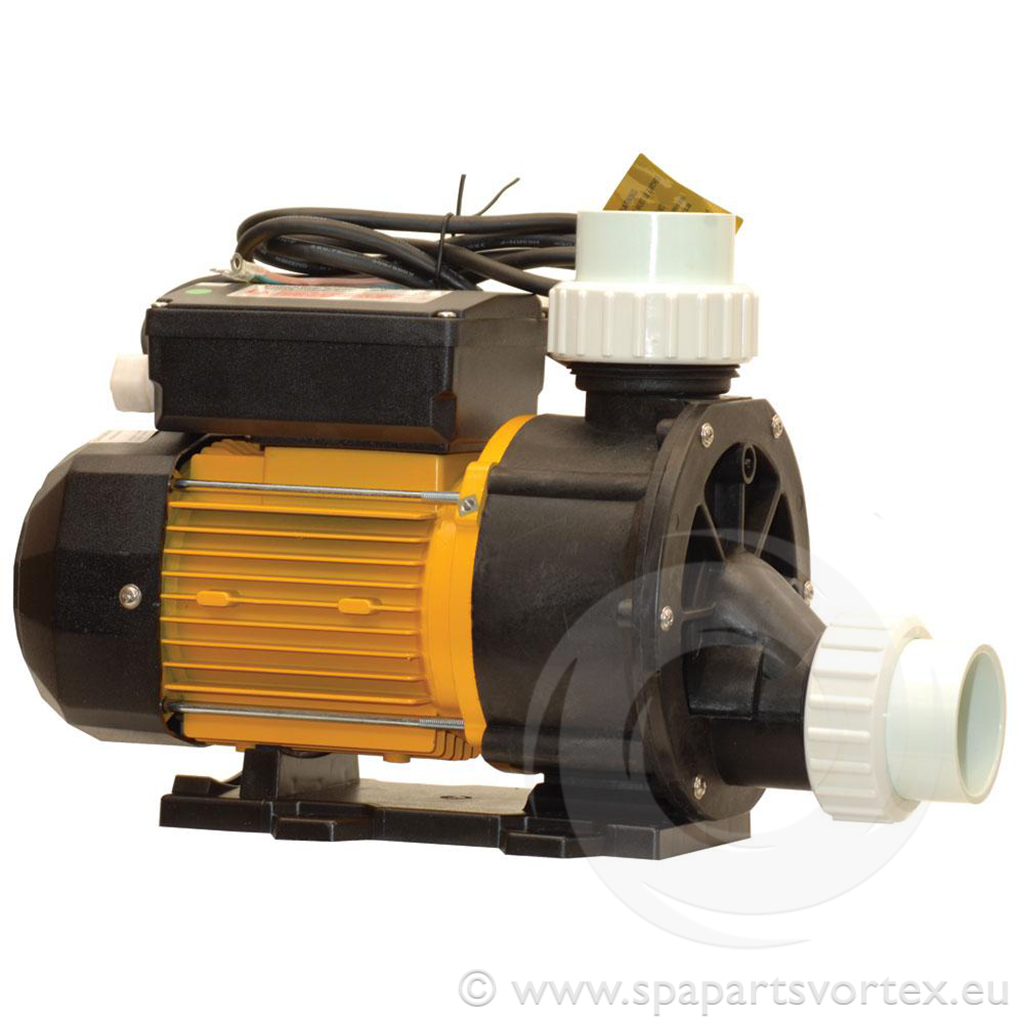

LX TDA50 Circulation Pump 0.5 HP

The LX TDA50 is a single-speed, 0.5 HP circulation pump designed for hot tubs and whirlpool baths. It is commonly used in Chinese-manufactured spas.

Specifications:

  • Motor Power: 0.5 HP (0.37 kW)
  • Current Draw: 2.0 A
  • Rotational Speed: 2,900 RPM
  • Plumbing Connections: 1.5-inch suction and discharge ports

Features:

  • Design: Center discharge with self-draining capability
  • Construction: Thermally protected motor with a 7 µF capacitor
  • Performance: Maximum flow rate of 180 L/min; maximum head of 10 m
  • Compatibility: Commonly found in Chinese spas, including AMC Winer, Cascade, MAAX, Monalisa, Trinity, and Spa Serve

This pump provides efficient and reliable operation in spa and whirlpool systems.

Product Attributes
Product Type: Circulation Pump
Brand: LX
Plumbing Connection: 1.5"
HP: 0.5 HP
Length: 320 mm
Width: 160 mm
Power kW: 0.37 kW
Height: 190 mm
