All Products

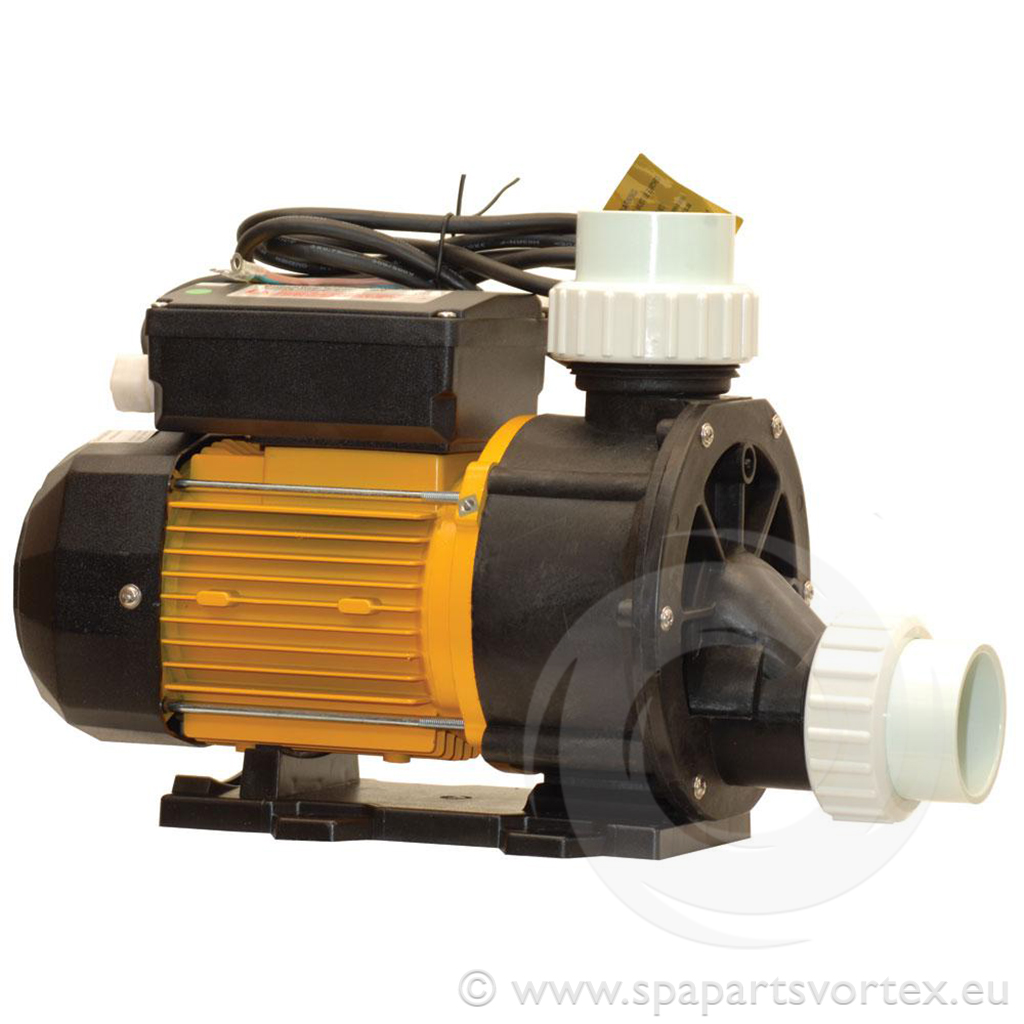

LX TDA50 Circulation Pump 0.5HP

https://spaparts.glodo.cloud/web/image/product.template/1153/image_1920?unique=43d906f

Not Available For Sale

  • Brand
  • Product Type
  • Plumbing Connection
  • HP
  • Length
  • Width
  • Power kW
  • Height

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description

LX TDA50 Circulation Pump 0.5 HP

The LX TDA50 is a single-speed, 0.5 HP circulation pump designed for hot tubs and whirlpool baths. It is commonly used in Chinese-manufactured spas.

Specifications:

  • Motor Power: 0.5 HP (0.37 kW)
  • Current Draw: 2.0 A
  • Rotational Speed: 2,900 RPM
  • Plumbing Connections: 1.5-inch suction and discharge ports

Features:

  • Design: Center discharge with self-draining capability
  • Construction: Thermally protected motor with a 7 µF capacitor
  • Performance: Maximum flow rate of 180 L/min; maximum head of 10 m
  • Compatibility: Commonly found in Chinese spas, including AMC Winer, Cascade, MAAX, Monalisa, Trinity, and Spa Serve

This pump provides efficient and reliable operation in spa and whirlpool systems.

Product Attributes
Brand: LX
Product Type: Circulation Pump
Plumbing Connection: 1.5"
HP: 0.5 HP
Length: 320 mm
Width: 160 mm
Power kW: 0.37 kW
Height: 190 mm
Product Attributes
Brand: LX
Product Type: Circulation Pump
Plumbing Connection: 1.5"
HP: 0.5 HP
Length: 320 mm
Width: 160 mm
Power kW: 0.37 kW
Height: 190 mm
