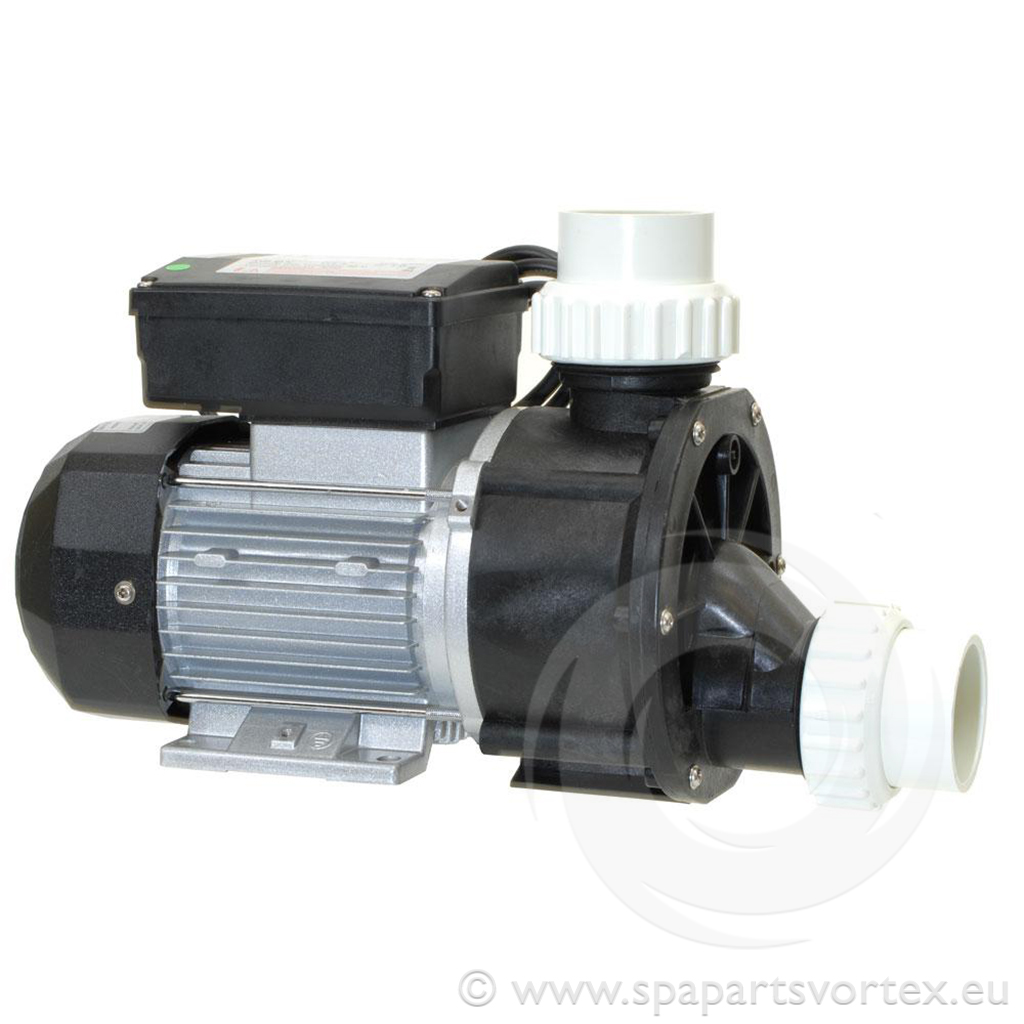

LX JA50 Circulation Pump 0.5HP
Product Description
LX JA50 Circulation Pump 0.5 HP
The LX JA50 is a single-speed, 0.5 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
Specifications:
- Motor Power: 0.5 HP (0.37 kW)
- Current Draw: 2.0 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
Features:
- Design: Center discharge with self-draining capability
- Construction: Thermally protected motor with a 7 µF capacitor
- Performance: Maximum flow rate of 180 L/min; maximum head of 10 m
- Compatibility: Commonly used in Chinese spas, including AMC Winer Spa and Spa Serve
This pump ensures efficient and reliable operation in spa and whirlpool systems.
Product Attributes
| Brand: LX |
| Product Type: Circulation Pump |
| Plumbing Connection: 1.5" |
| HP: 0.5 HP |
| Length: 325 mm |
| Width: 155 mm |
| Power kW: 0.37 kW |
| Height: 185 mm |
Product Attributes
| Brand: LX |
| Product Type: Circulation Pump |
| Plumbing Connection: 1.5" |
| HP: 0.5 HP |
| Length: 325 mm |
| Width: 155 mm |
| Power kW: 0.37 kW |
| Height: 185 mm |
Product Description
LX JA50 Circulation Pump 0.5 HP
The LX JA50 is a single-speed, 0.5 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
Specifications:
- Motor Power: 0.5 HP (0.37 kW)
- Current Draw: 2.0 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
Features:
- Design: Center discharge with self-draining capability
- Construction: Thermally protected motor with a 7 µF capacitor
- Performance: Maximum flow rate of 180 L/min; maximum head of 10 m
- Compatibility: Commonly used in Chinese spas, including AMC Winer Spa and Spa Serve
This pump ensures efficient and reliable operation in spa and whirlpool systems.
