LX EA450 with Air Switch (optional)
Product Description

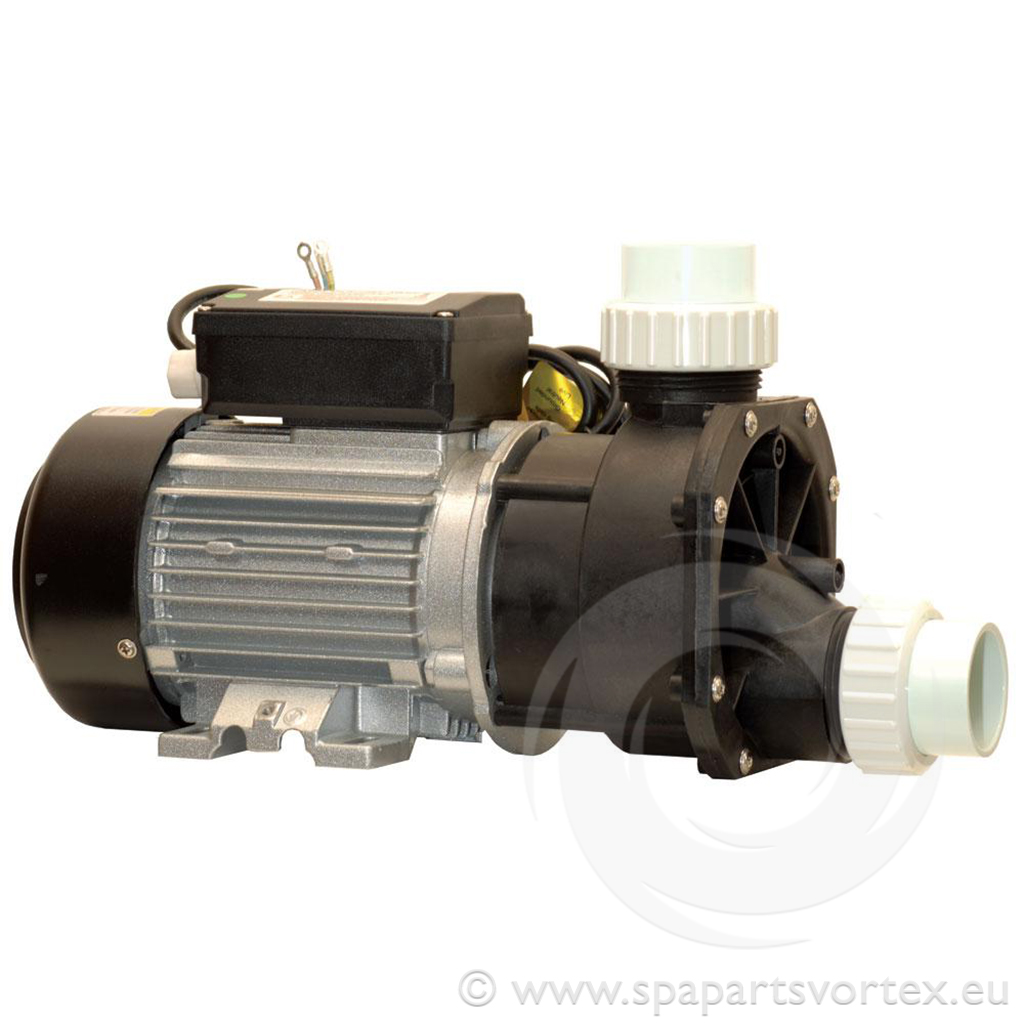

LX EA450 Circulation Pump with Optional Air Switch
The LX EA450 is a single-speed, 1.5 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
Specifications:
- Motor Power: 1.5 HP (1.1 kW)
- Current Draw: 5.8 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
Features:
- Design: Centre discharge with self-draining capability
- Construction: Thermally protected motor with a capacitor
- Performance: Maximum flow rate of 360 L/min; maximum head of 16 m
- Compatibility: Suitable for various spa brands, including Chinese-manufactured spas with 10–12 nozzles
This pump provides efficient and reliable operation for spa and whirlpool systems.
Product Attributes
| Brand: LX |
| Product Type: Circulation Pump |
| Plumbing Connection: 1.5" |
| HP: 1.5 HP |
| Length: 420 mm |
| Width: 185 mm |
| Power kW: 1.13 kW |
| Height: 255 mm |
Product Attributes
| Brand: LX |
| Product Type: Circulation Pump |
| Plumbing Connection: 1.5" |
| HP: 1.5 HP |
| Length: 420 mm |
| Width: 185 mm |
| Power kW: 1.13 kW |
| Height: 255 mm |
Product Description
LX EA450 Circulation Pump with Optional Air Switch
The LX EA450 is a single-speed, 1.5 HP circulation pump designed for hot tubs and whirlpool baths, featuring an optional air switch for manual operation.
Specifications:
- Motor Power: 1.5 HP (1.1 kW)
- Current Draw: 5.8 A
- Rotational Speed: 2,900 RPM
- Plumbing Connections: 1.5-inch suction and discharge ports
Features:
- Design: Centre discharge with self-draining capability
- Construction: Thermally protected motor with a capacitor
- Performance: Maximum flow rate of 360 L/min; maximum head of 16 m
- Compatibility: Suitable for various spa brands, including Chinese-manufactured spas with 10–12 nozzles
This pump provides efficient and reliable operation for spa and whirlpool systems.
