Product Description

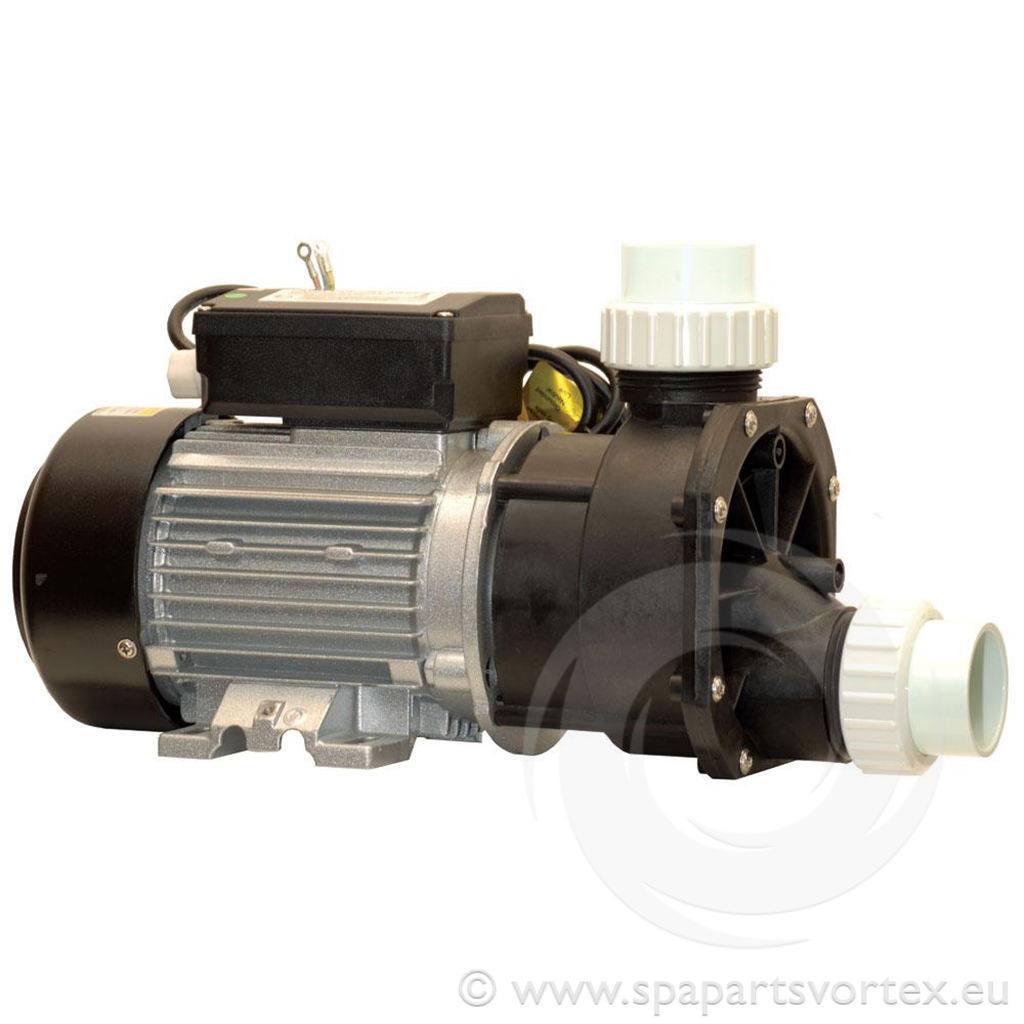

LX EA350 Circulation Pump with Optional Air Switch

The LX EA350 is a 1.0 HP circulation pump commonly used in hot tubs and whirlpool baths.

Specifications:

  • Motor Power: 1.0 HP (0.75 kW)
  • Current Draw: 3.8 A
  • Rotational Speed: 2,900 RPM
  • Connections: 1.5-inch suction and discharge ports

Features:

  • Design: Center discharge, self-draining
  • Construction: Thermally protected motor with 15 µF capacitor
  • Performance: Maximum flow rate of 320 L/min; maximum head of 11 m
  • Compatibility: Works with AMC Winer Spas, Passion Spas, Wellis Spas, and DanZ Spas

Product Attributes
Brand: LX
Product Type: Circulation Pump
Plumbing Connection: 1.5"
HP: 1.0 HP
Length: 380 mm
Width: 160 mm
Power kW: 0.75 kW
Height: 205 mm
