Product Description

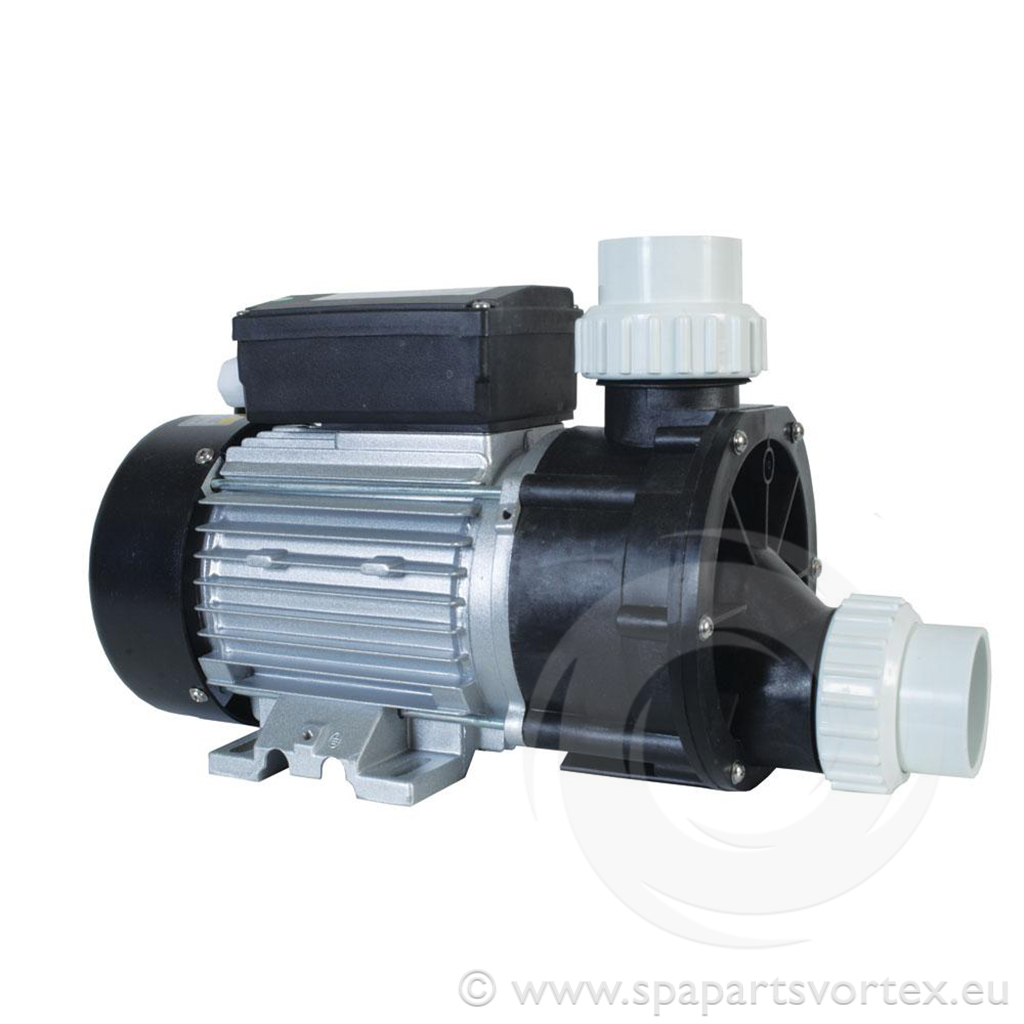

LX DH1.0 Circulation Pump with Optional Air Switch

The LX DH1.0 is a single-speed, 1.0 HP circulation pump designed for use in whirlpool baths and hot tubs, featuring an optional air switch for manual operation.

Specifications:

  • Motor Power: 1.0 HP (0.75 kW)
  • Current Draw: 3.6 A
  • Rotational Speed: 2,900 RPM
  • Plumbing Connections: 1.5-inch suction and discharge ports

Features:

  • Design: Center discharge with self-draining capability
  • Construction: Thermally protected motor with a 5 µF capacitor
  • Performance: Maximum flow rate of 340 L/min; maximum head of 10.5 m
  • Compatibility: Suitable for spa brands such as AMC Winer Spa, DanZ Spas, and Spa Serve

This pump provides reliable performance for spa and whirlpool systems, with an optional air switch for enhanced control.

Product Attributes
Brand: LX
Product Type: Circulation Pump
Plumbing Connection: 1.5"
HP: 1.0 HP
Length: 350 mm
Width: 140 mm
Power kW: 0.75 kW
Height: 190 mm
Product Attributes
Brand: LX
Product Type: Circulation Pump
Plumbing Connection: 1.5"
HP: 1.0 HP
Length: 350 mm
Width: 140 mm
Power kW: 0.75 kW
Height: 190 mm
