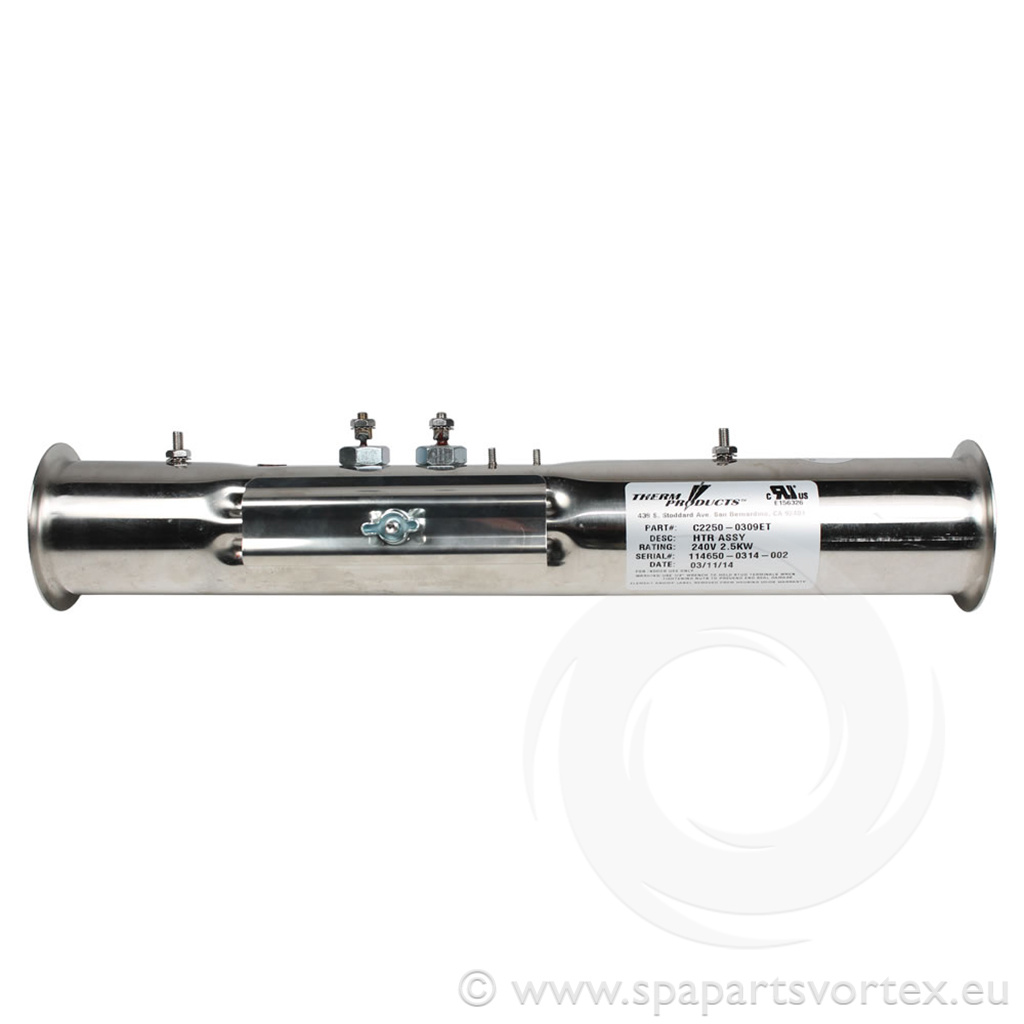

HydroQuip 2.5kW Challenger heater

https://spaparts.glodo.cloud/web/image/product.template/864/image_1920?unique=a0df8bc

Not Available For Sale

  • Brand
  • Product Type
  • Power kW
  • Tube Diameter Reference
  • Tube Length
  • Assembled Length
  • Element Material

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description
Box Quantity: 1 Power: Volts: 230 Hz: 50 KW: 2.5 Amps: 10-10.5 Specifications: Sensor compatibility: Has a pocket for the high limit sensor or can be used with the hi limit ribbon style alsoRequired flow rate: Set by pressure switchFlow detection: 2-PSI Tecmark pressure switch Compatible With: Gulf Coast Spas with the blue faced metal control box amongst others Connections & Fixings: Usually held in place of small fixing nuts. Hi limit sensor pouch on the front. 2 inch white plastic female sockets to connect to plumbing Dimensions: Length: 381 mm Diameter: 50.8 mm Between terminals: 31.75 mm Overall length complete: 495.3 mm Additional Notes: Commonly used with a Tecmark pressure switch. This heater may also have a label saying, Thermcore, Hydroquip or another but if it looks the same it most probably is, contact us if you are unsure
Product Attributes
Brand: HydroQuip
Product Type: Common Heater Tube
Power kW: 2.5kW
Tube Diameter Reference: 2 inch
Tube Length: 365mm
Assembled Length: 480mm
Element Material: Incoloy
Product Attributes
Brand: HydroQuip
Product Type: Common Heater Tube
Power kW: 2.5kW
Tube Diameter Reference: 2 inch
Tube Length: 365mm
Assembled Length: 480mm
Element Material: Incoloy
Product Description
Box Quantity: 1 Power: Volts: 230 Hz: 50 KW: 2.5 Amps: 10-10.5 Specifications: Sensor compatibility: Has a pocket for the high limit sensor or can be used with the hi limit ribbon style alsoRequired flow rate: Set by pressure switchFlow detection: 2-PSI Tecmark pressure switch Compatible With: Gulf Coast Spas with the blue faced metal control box amongst others Connections & Fixings: Usually held in place of small fixing nuts. Hi limit sensor pouch on the front. 2 inch white plastic female sockets to connect to plumbing Dimensions: Length: 381 mm Diameter: 50.8 mm Between terminals: 31.75 mm Overall length complete: 495.3 mm Additional Notes: Commonly used with a Tecmark pressure switch. This heater may also have a label saying, Thermcore, Hydroquip or another but if it looks the same it most probably is, contact us if you are unsure
