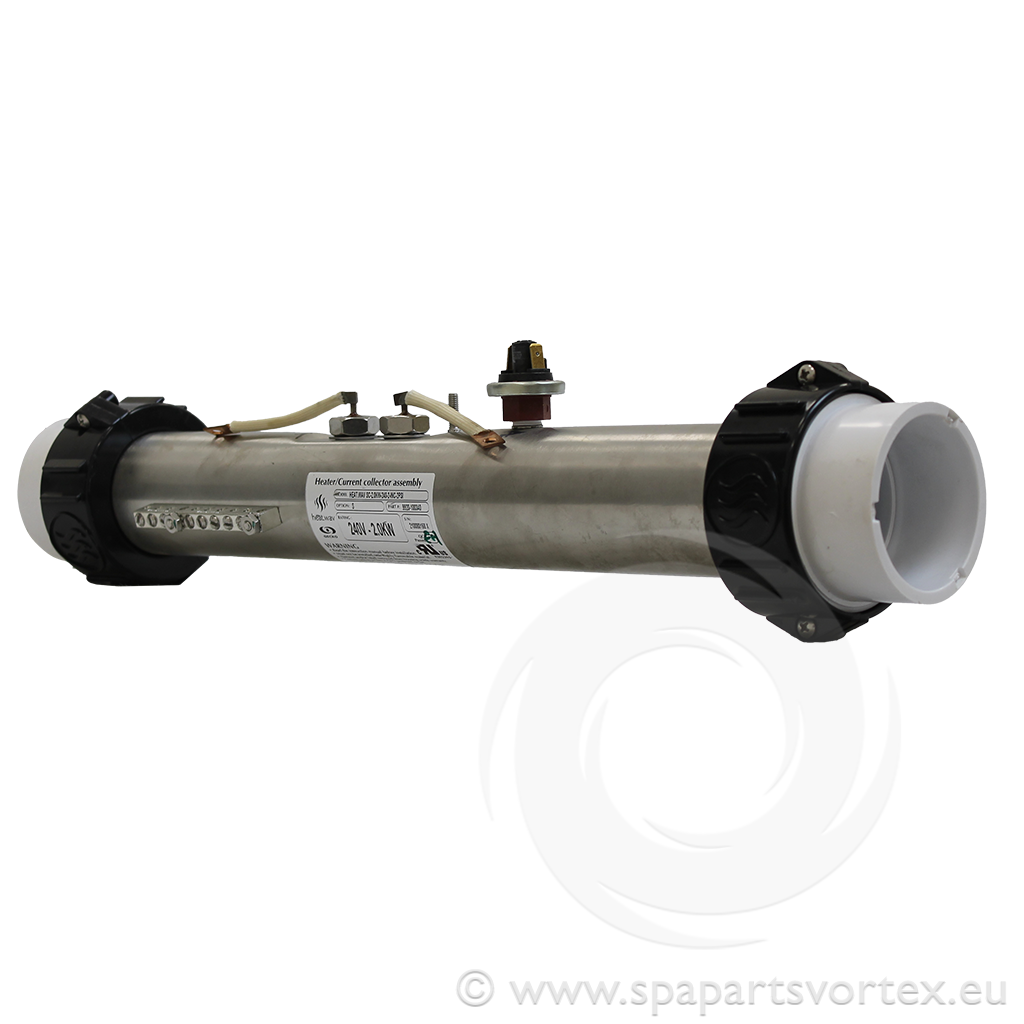

Gecko HEAT.WAV 2.0kW Heater SSPA
Product Description
Box Quantity: 12
Power: Volts: 230 Hz: 50 KW: 2.0 Amps: 8-8.5
Specifications: Sensor compatibility: Gecko & Hydroquip probe and ribbon style Required flow rate: Set by pressure switch Flow detection: 2-PSI Tecmark pressure switch
Compatible With: Gecko SSPA later models.
Connections & Fixings: Usually held in the blue plastic moulding of the control box at the bottom of the Spa pack. Heater terminals are connected via flexible power cords that clip directly onto the PCB with no need for tightening bolts etc.
Dimensions: Length: 381 mm Diameter: 50.8 mm Between terminals: 31.75 mm Overall length complete: 495.3 mm
Additional Notes: This product is similar to HT-GEC20
Product Attributes
| Brand: Gecko |
| Product Type: Common Heater Tube |
| Power kW: 2.0kW |
| Tube Diameter Reference: 2 inch |
| Tube Length: 360mm |
| Assembled Length: 490mm |
| Element Material: Incoloy |
Product Attributes
| Brand: Gecko |
| Product Type: Common Heater Tube |
| Power kW: 2.0kW |
| Tube Diameter Reference: 2 inch |
| Tube Length: 360mm |
| Assembled Length: 490mm |
| Element Material: Incoloy |
Product Description
Box Quantity: 12
Power: Volts: 230 Hz: 50 KW: 2.0 Amps: 8-8.5
Specifications: Sensor compatibility: Gecko & Hydroquip probe and ribbon style Required flow rate: Set by pressure switch Flow detection: 2-PSI Tecmark pressure switch
Compatible With: Gecko SSPA later models.
Connections & Fixings: Usually held in the blue plastic moulding of the control box at the bottom of the Spa pack. Heater terminals are connected via flexible power cords that clip directly onto the PCB with no need for tightening bolts etc.
Dimensions: Length: 381 mm Diameter: 50.8 mm Between terminals: 31.75 mm Overall length complete: 495.3 mm
Additional Notes: This product is similar to HT-GEC20
