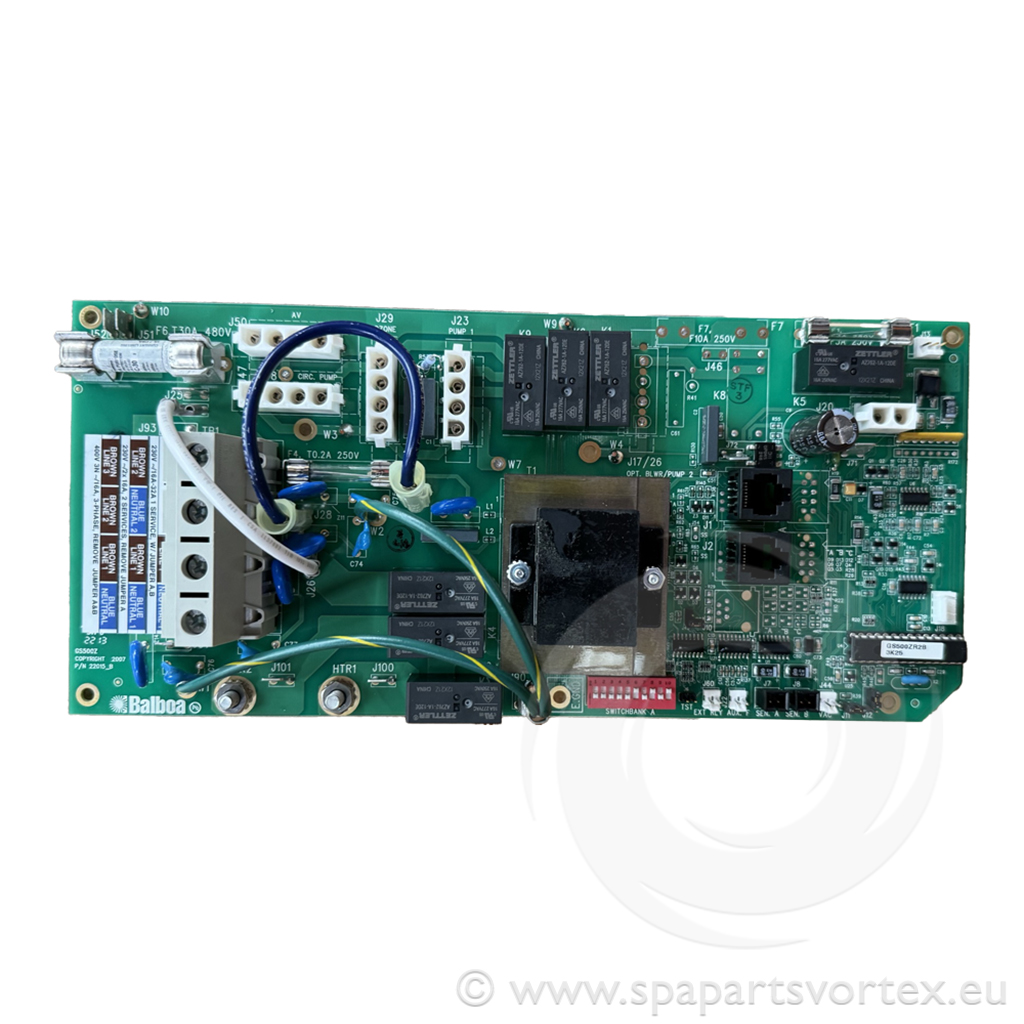

Balboa GS500Z PCB
Product Description
Box Quantity: 1. Dimensions: Length: 280 mm Height: 130 mm
Volts: 230 Hz: 50
Pump 1: Single or dual speed + circulation pump if required
Pump 2: N/A Pump 3: N/A
Air Blower: No
Heater: Yes
Ozone: Yes
Light: 12 volt
Sensor style: M7 x 2
Pressure Switch: No
Compatible With: GS500Z and GS500 control box. Topside controls from the duplex VL range such as the VL404 and the MVP260 but is more commonly used with the Mini Panel VL200. Used with QCA Spas and Splash Spas amongst others.
This PCB is used as a replacement for an existing GS500Z or GS500 control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
WE OFTEN HAVE CUSTOMERS WHO BUY THIS PCB BECAUSE THEIR BOARD SAYS "GS500 OR GS500Z" IN THE BOTTOM LEFT-HAND CORNER OF THE BOARD BUT THIS IS JUST A STANDARD PRINT ON ALL BOARDS OF THIS KIND. PLEASE CHECK THE LABEL ON THE SOFTWARE CHIP AS THIS WILL GIVE YOU A BETTER IDEA OF WHAT YOU ACTUALLY HAVE. IF YOUR SYSTEM HAS AN AIR BLOWER OR OPERATES MORE THAN ONE LARGE PUMP THEN YOU WILL MOST CERTAINLY NEED ANOTHER BOARD FROM THE GS RANGE. PLEASE CONTACT US IF YOU ARE UNSURE.
Product Attributes
| Brand: Balboa |
| Product Type: PCB |
| Length: 280mm |
| Width: 130mm |
| Model / Series: GS |
| Circ Pump: Yes |
| No. of Pumps: 1 |
| Blower: No |
