  3. Balboa GS501Z PCB
PCB

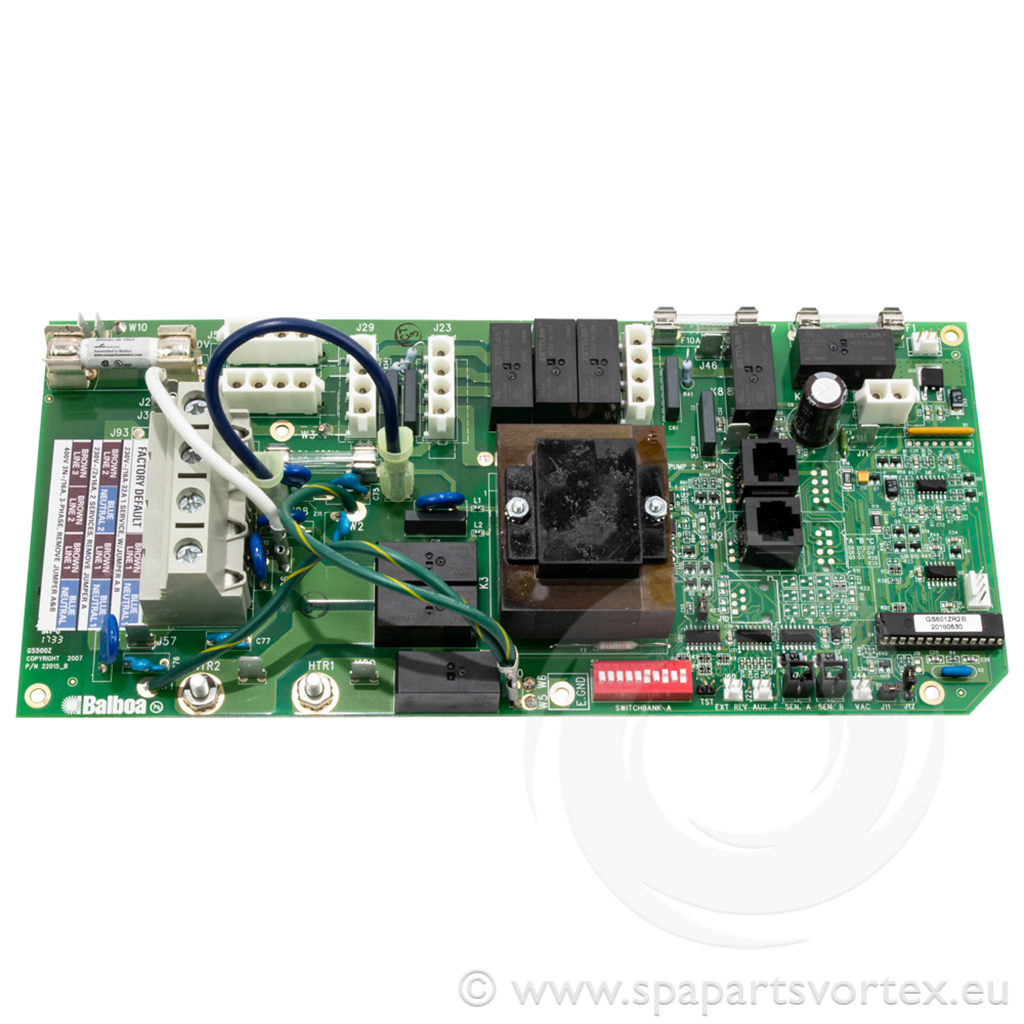

Balboa GS501Z PCB

https://spaparts.glodo.cloud/web/image/product.template/173/image_1920?unique=a0df8bc

Not Available For Sale

  • Brand
  • Product Type
  • Length
  • Width
  • Model / Series
  • Circ Pump
  • No. of Pumps
  • Blower

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description
Box Quantity: 1. Dimensions: Length: 180 mm Height: 130 mm

Volts: 230 Hz: 50
Pump 1: Single or dual speed + circulation pump if required
Pump 2: N/A
Pump 3: N/A
Air Blower: Yes (optional)
Heater: Yes
Ozone: Yes
Light: 12 volt
Sensor style: M7 x 2
Pressure Switch: No
Compatible With: GS501Z control box. Topside controls from the duplex VL range such as the VL404 and the MVP260. Used with Spaform, Spaform Esperanto Range and more. Great Lakes GGS501 CE 53556 (box code 53555-01)
Board number 53341

This PCB is used as a replacement for an existing GS501Z control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.

*SPECIAL NOTE* J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE.
Product Attributes
Brand: Balboa
Product Type: PCB
Length: 280mm
Width: 130mm
Model / Series: GS
Circ Pump: Yes
No. of Pumps: 1
Blower: Yes
