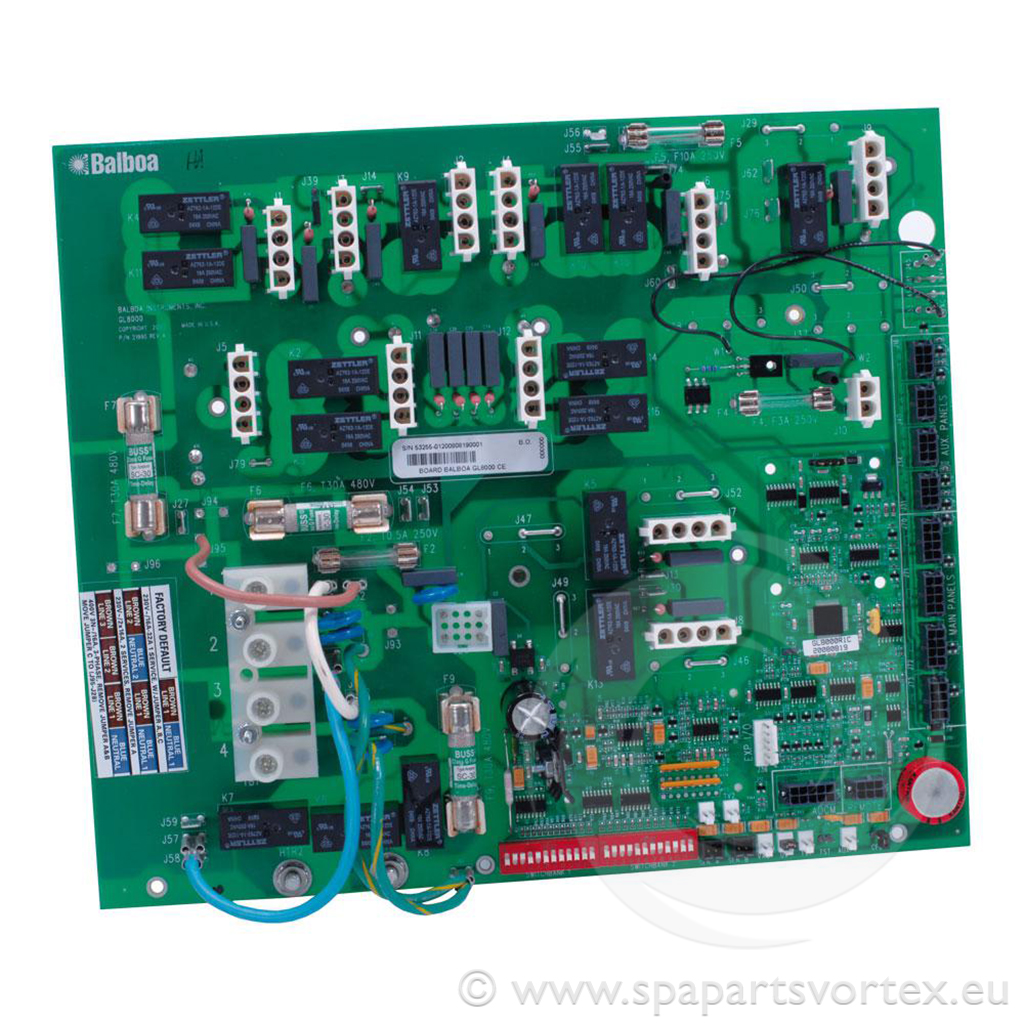

Balboa GL8000 PCB
Product Description
Box Quantity: 1. Dimensions: Length: 290 mm Height: 250 mm
Volts: 230 Hz: 50
Pump 1: Single or dual speed + circulation pump if required
Pump 2: Single or dual speed
Pump 3: Single speed
Air Blower: Yes (optional)
Heater: Yes
Ozone: Yes
Light: 12 volts or 230 volts
Sensor style: M7 x 2 Pressure Switch: No
Compatible With: GL8000 control box. Can be found on brands such as Catalina, Spaform, Leisurerite, QCA Spas to name a few
This PCB has the ability to run numerous pumps and topside panels. The GL8000 PCB's in circulation in this country are mostly unlicensed meaning this generic unit will work with most Hot Tubs
This PCB is used as a replacement for an existing GL8000 control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
Volts: 230 Hz: 50
Pump 1: Single or dual speed + circulation pump if required
Pump 2: Single or dual speed
Pump 3: Single speed
Air Blower: Yes (optional)
Heater: Yes
Ozone: Yes
Light: 12 volts or 230 volts
Sensor style: M7 x 2 Pressure Switch: No
Compatible With: GL8000 control box. Can be found on brands such as Catalina, Spaform, Leisurerite, QCA Spas to name a few
This PCB has the ability to run numerous pumps and topside panels. The GL8000 PCB's in circulation in this country are mostly unlicensed meaning this generic unit will work with most Hot Tubs
This PCB is used as a replacement for an existing GL8000 control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
Product Attributes
| Brand: Balboa |
| Product Type: PCB |
| Length: 290mm |
| Width: 250mm |
| Model / Series: GL |
| Circ Pump: Yes |
| No. of Pumps: 3 |
| Blower: Yes |
Product Attributes
| Brand: Balboa |
| Product Type: PCB |
| Length: 290mm |
| Width: 250mm |
| Model / Series: GL |
| Circ Pump: Yes |
| No. of Pumps: 3 |
| Blower: Yes |
