Electrical

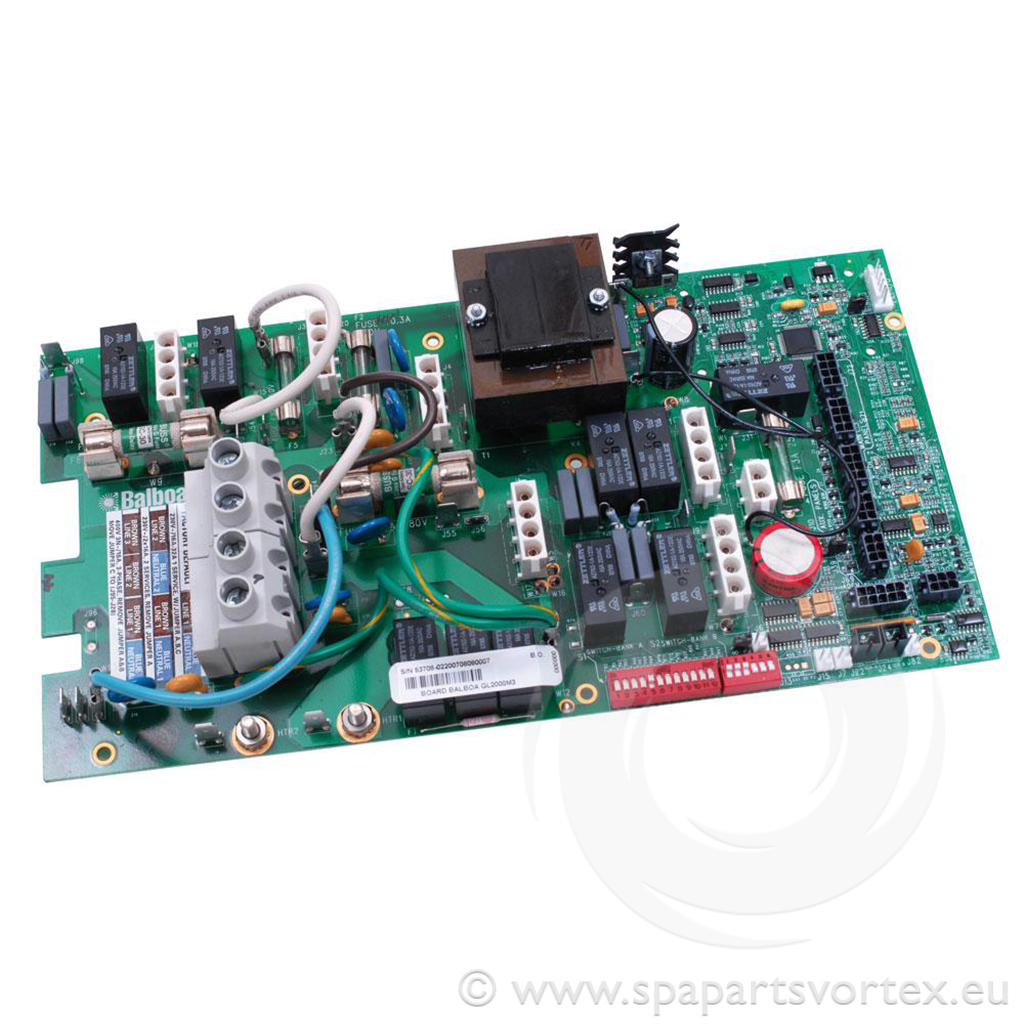

Balboa GL2000 mach3 PCB

https://spaparts.glodo.cloud/web/image/product.template/171/image_1920?unique=a0df8bc

PLASTIC BOX ONLY

Not Available For Sale

  • Brand
  • Product Type
  • Length
  • Width
  • Model / Series
  • Circ Pump
  • No. of Pumps
  • Blower

This combination does not exist.

Contact Us
  • VISA
  • Mastercard
  • Paypal
  • Google Pay
  • Apple Pay
Product Description
Box Quantity: 1. Dimensions: Length: 290 mm Height: 155 mm

Volts: 230 Hz: 50
Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: Single or dual speed (if no blower used)
Pump 3 or Air Blower: x 1 (if pump 2 is single speed)
Extra port: Available only with the addition of an expander board
Heater: Yes
Ozone: Yes
Light: 12 volts or 230 volts
Sensor style: M7 x 2 Pressure Switch: No
Compatible With: GL2000/1 mach 3 control box. Topside controls from the high spec ML range such as theML400, ML700 or ML900.Hot Tubs: Hydrospa Essence PCB SN HSEX2000 54234(MUST NOT BE USED IN METAL BOX, FOR USE WITH PLASTIC BOX ONLY)

This PCB is used as a replacement for an existing GL2000 mach 3 control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
