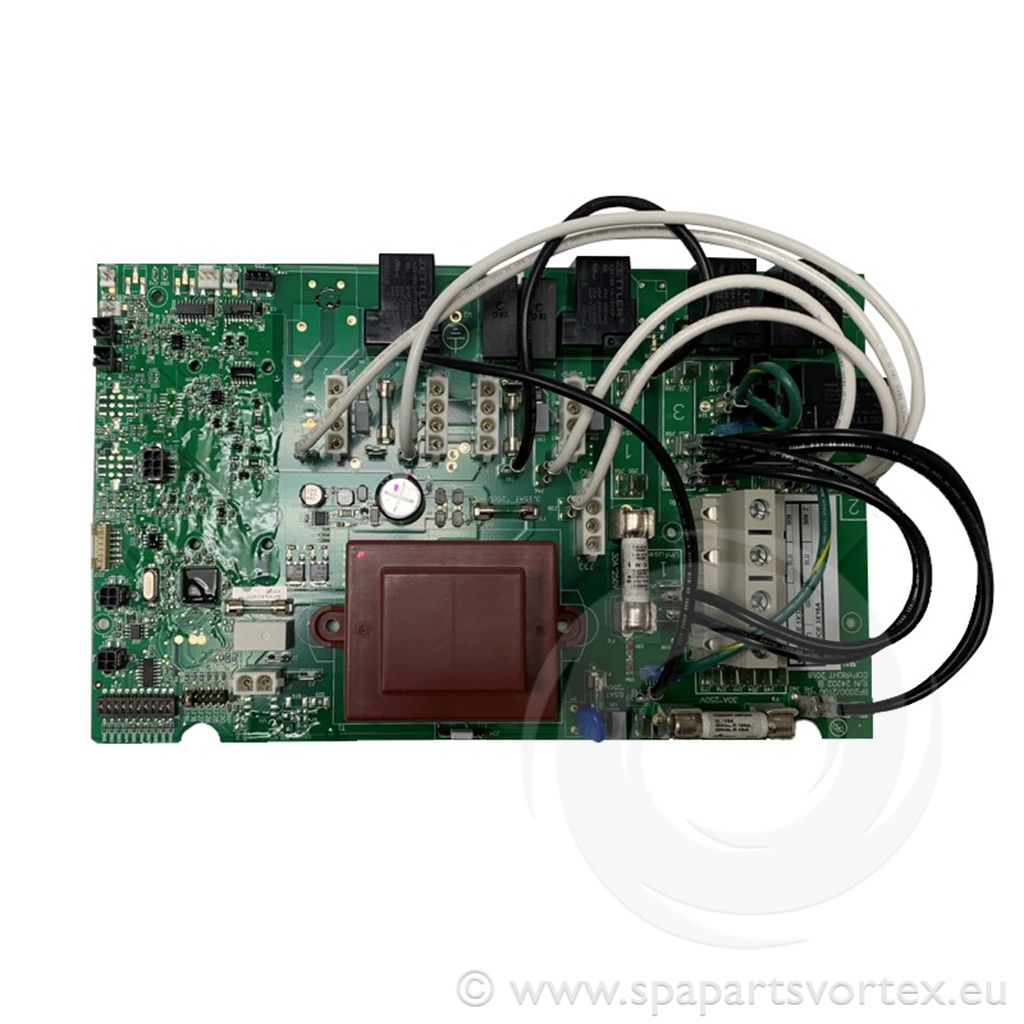

Balboa BP6013G3 PCB CZM8
Product Description
Box Quantity: 1. Dimensions: Length: 280mm Height: 170mm
Volts: 230 Hz: 50
Pump 1: Dual speed pump or Single speed if circulation pump used.
Pump 2 or Blower: Single speed
Heater: x 1 (3kW)
Ozone: x 1 Light: x1, 10v @ 1amp Max
Radio, TV/AV: Point available
Feature: Designed for use with WiFi receiver for iPhone operation.
Compatible With: BP600/601 control box. Topside controls from the serial standard TP range such as the TP800, TP600, and TP400.
This PCB is used as a replacement for an existing BP600/601 control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
Volts: 230 Hz: 50
Pump 1: Dual speed pump or Single speed if circulation pump used.
Pump 2 or Blower: Single speed
Heater: x 1 (3kW)
Ozone: x 1 Light: x1, 10v @ 1amp Max
Radio, TV/AV: Point available
Feature: Designed for use with WiFi receiver for iPhone operation.
Compatible With: BP600/601 control box. Topside controls from the serial standard TP range such as the TP800, TP600, and TP400.
This PCB is used as a replacement for an existing BP600/601 control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
Product Attributes
| Brand: Balboa |
| Product Type: PCB |
| Length: 280mm |
| Width: 150mm |
| Model / Series: BP |
| Circ Pump: Yes |
| No. of Pumps: 3 |
| Blower: Yes |
Product Attributes
| Brand: Balboa |
| Product Type: PCB |
| Length: 280mm |
| Width: 150mm |
| Model / Series: BP |
| Circ Pump: Yes |
| No. of Pumps: 3 |
| Blower: Yes |
Product Description
Box Quantity: 1. Dimensions: Length: 280mm Height: 170mm
Volts: 230 Hz: 50
Pump 1: Dual speed pump or Single speed if circulation pump used.
Pump 2 or Blower: Single speed
Heater: x 1 (3kW)
Ozone: x 1 Light: x1, 10v @ 1amp Max
Radio, TV/AV: Point available
Feature: Designed for use with WiFi receiver for iPhone operation.
Compatible With: BP600/601 control box. Topside controls from the serial standard TP range such as the TP800, TP600, and TP400.
This PCB is used as a replacement for an existing BP600/601 control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
Volts: 230 Hz: 50
Pump 1: Dual speed pump or Single speed if circulation pump used.
Pump 2 or Blower: Single speed
Heater: x 1 (3kW)
Ozone: x 1 Light: x1, 10v @ 1amp Max
Radio, TV/AV: Point available
Feature: Designed for use with WiFi receiver for iPhone operation.
Compatible With: BP600/601 control box. Topside controls from the serial standard TP range such as the TP800, TP600, and TP400.
This PCB is used as a replacement for an existing BP600/601 control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.
