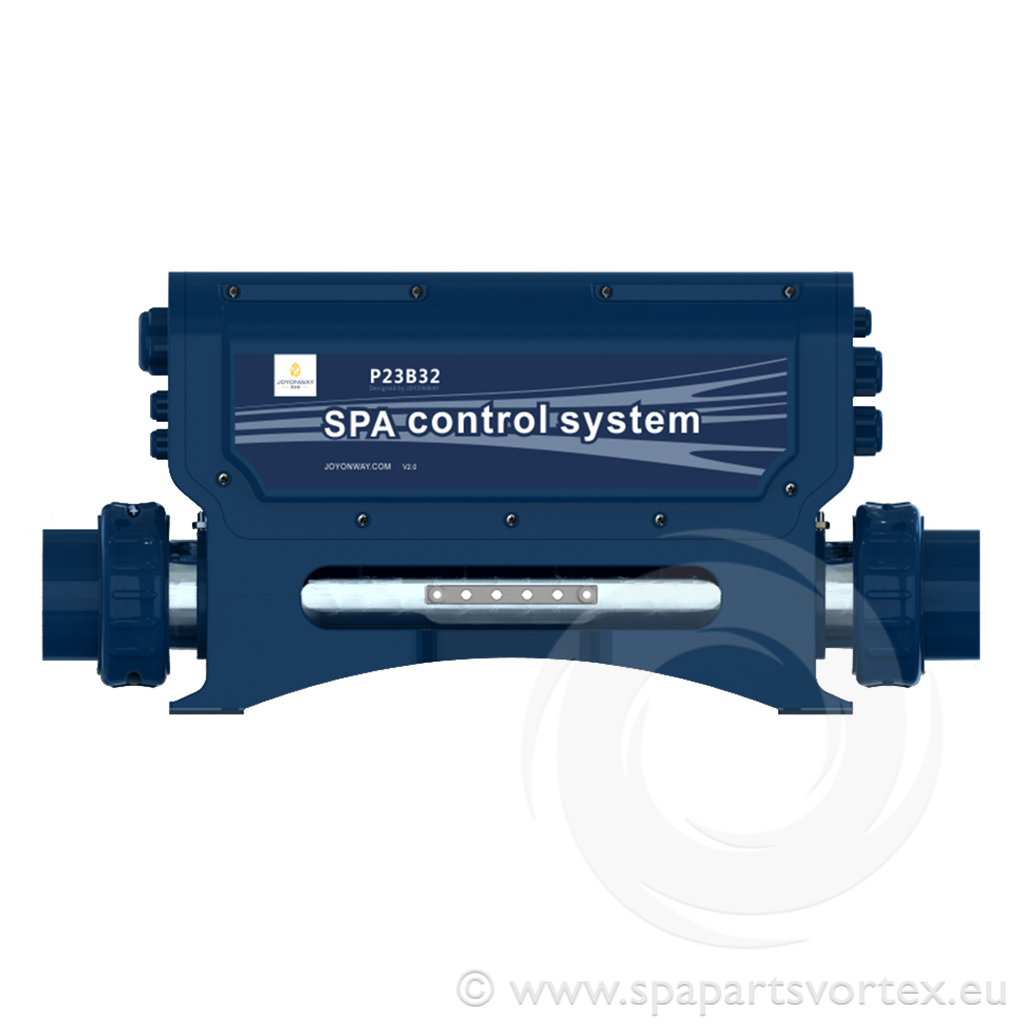

Joyonway P23B32 Control Box
Product Description
The Joyonway P23B32 Control Box is a 230VAC, 50Hz spa control unit designed for various spa setups. It includes a 3kW heater and supports single or dual-speed pumps, an air blower, ozone, and a 12V light. The unit is compatible with the PB553 topside control and features 2-inch socket heater union sleeves for secure connections. This control box has been replaced by the BX-JO290 model.
Specifications:
- Power: 230VAC, 50Hz
- Outputs:
- Pump 1: Single or dual-speed pump + circulation pump (if required)
- Pump 2: 1 unit
- Air Blower: 1 unit
- Heater: 1 unit (3kW)
- Ozone: 1 unit
- Light: 1 unit, 12V
- TV/AV: Point available, 1A
- Connections: 2-inch socket heater union sleeves
- Compatible With: PB553 topside control
Dimensions:
- Length:
- Including heater: 434 mm
- Box only: 360 mm
- Width: 82 mm
- Height: 233 mm
Box Quantity: 1 unit
Important Notes:
- This is a generic unlicensed control box.
- Must be installed by a competent individual or tradesman.
- Incorrect installation could invalidate the warranty.
- Replaced By: BX-JO290.
Product Attributes
| Product Type: Control Box |
| Brand: Joyonway |
| Max Pumps: 2 |
| Power kW: 3.0kW |
| Circ Pump: Yes |
| Blower: Yes |
| Total Comp. Relays: 4 |
| Plumbing Size: 2" |
