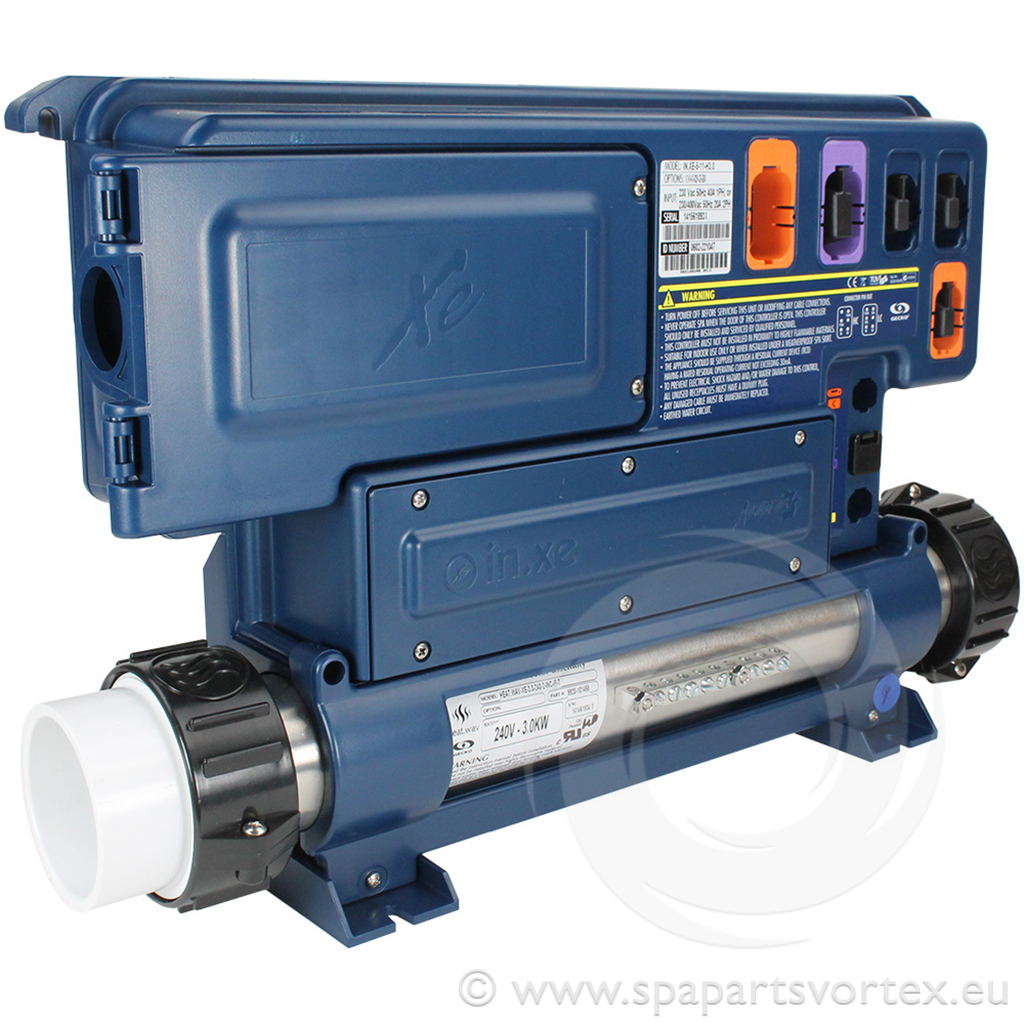

Gecko IN.XE Control Box
Product Description
The Gecko IN.XE Control Box (3kW) is a reliable solution for entry-level and mid-range spas, featuring an IPX5-rated waterproof design for durability in spa environments. Designed for like-for-like replacements, this control box supports essential components such as pumps, an air blower, ozone, and lighting. It is compatible with Gecko topside controls (IN.K600 Static, IN.K200, K19.IN, K35.IN, and IN.K450) and connects using industry-standard 2-inch unions. Installation must be carried out by a competent individual or tradesperson to maintain warranty validity.
Specifications:
- Voltage: 230VAC
- Frequency: 50Hz
- Pump Support:
- Pump 1: Single or dual-speed, with an optional circulation pump
- Pump 2: Single-speed
- Additional Outputs:
- Air Blower: 1 unit (optional)
- Heater: 3kW
- Ozone: 1 connection
- Light: 1 unit
Connections:
- Industry-standard 2-inch female unions suitable for gluing
Dimensions:
- Length: 442 mm (17.40 inches)
- Width: 136 mm (5.35 inches)
- Height: 299 mm (11.77 inches)
Box Quantity: Sold in multiples of 5 units.
Product Attributes
| Product Type: Control Box |
| Brand: Gecko |
| Max Length: 480mm |
| Max Height: 270mm |
| Max Pumps: 2 |
| Power kW: 3.0kW |
| Circ Pump: Yes |
| Blower: Yes |
| Max Depth: 100mm |
| Total Comp. Relays: 4 |
| Plumbing Size: 2" |
Product Attributes
| Product Type: Control Box |
| Brand: Gecko |
| Max Length: 480mm |
| Max Height: 270mm |
| Max Pumps: 2 |
| Power kW: 3.0kW |
| Circ Pump: Yes |
| Blower: Yes |
| Max Depth: 100mm |
| Total Comp. Relays: 4 |
| Plumbing Size: 2" |
Product Description
The Gecko IN.XE Control Box (3kW) is a reliable solution for entry-level and mid-range spas, featuring an IPX5-rated waterproof design for durability in spa environments. Designed for like-for-like replacements, this control box supports essential components such as pumps, an air blower, ozone, and lighting. It is compatible with Gecko topside controls (IN.K600 Static, IN.K200, K19.IN, K35.IN, and IN.K450) and connects using industry-standard 2-inch unions. Installation must be carried out by a competent individual or tradesperson to maintain warranty validity.
Specifications:
- Voltage: 230VAC
- Frequency: 50Hz
- Pump Support:
- Pump 1: Single or dual-speed, with an optional circulation pump
- Pump 2: Single-speed
- Additional Outputs:
- Air Blower: 1 unit (optional)
- Heater: 3kW
- Ozone: 1 connection
- Light: 1 unit
Connections:
- Industry-standard 2-inch female unions suitable for gluing
Dimensions:
- Length: 442 mm (17.40 inches)
- Width: 136 mm (5.35 inches)
- Height: 299 mm (11.77 inches)
Box Quantity: Sold in multiples of 5 units.
