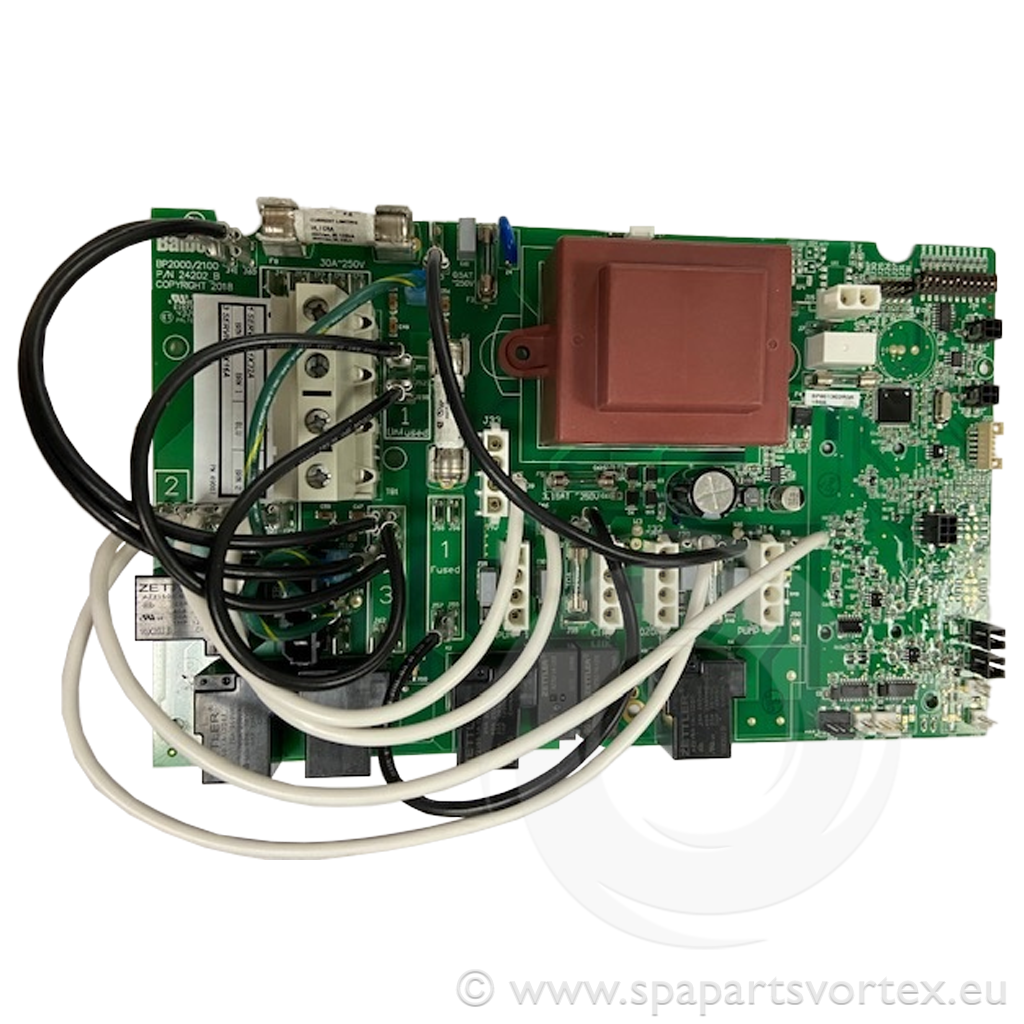

BALBOA BP6013G2 PCB BP2X CZM8 is designed for use in spa and hot tub systems, offering support for multiple pumps, blower, heater, ozone, light, and more. It is compatible with the BP600/601 control box and topside controls from the TP range, and includes WiFi functionality for iPhone operation.
- Circ. Pump: Yes
- Pump 1: Dual or single speed
- Pump 2: Dual or single speed
- Blower: Yes
- Heater: x1 (3 kW)
- Ozone: x1
- Light: x1, 10V @ 1A Max
- Radio, TV/AV: Point available
- Feature: Designed for use with WiFi receiver for iPhone operation
- Compatibility: BP600/601 control box, TP range topside controls (TP800, TP600, TP400)
Box Quantity: Sold individually
Product note: If board is upgraded from an older board the expander will need to upgraded to suit
New system | Replaces existing systems |
BP8 | BP6013G1 and BP6013G3 |
BP9 | BP6013G2, BP2100G0 and BP2100G1 |
BP10 | BP21MS3B and BP214PBC |
