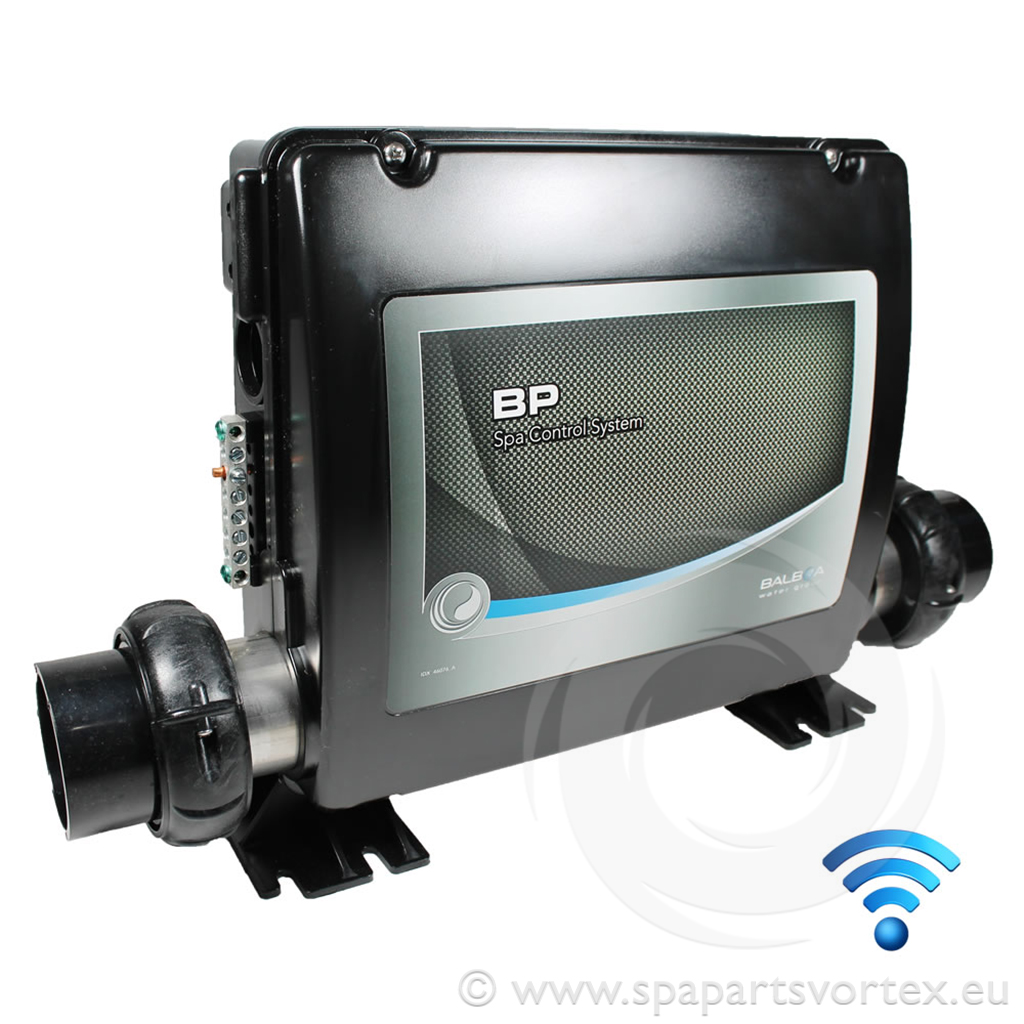

The BP2100G1 is a high-capacity spa control system featuring a 3.0 kW heater, designed to manage up to three pumps, a blower, and a circulation pump. It supports ozone and lighting systems and is compatible with all Balboa TP Series topside panels. The unit is WiFi-ready when paired with a compatible module, allowing for remote operation via smart devices. Optional expansion boards enable the addition of a fourth pump or blower using a splitter cable.
Note/:
Factory preset for 3 x Dual-speed pumps, Alternative setups are easily done via test mode.
Specifications:
-
Pump 1: Dual-speed or single-speed (with circulation pump)
-
Pump 2: Dual-speed or single-speed
-
Pump 3: Single-speed (or dual-speed if no blower is used)
-
Circulation Pump: Yes
-
Blower: Yes
-
Ozone: Yes
-
Lighting Output: 10 V @ 1 A
-
Topside Compatibility: Fits all Balboa TP Series panels
-
WiFi: Ready (module required)
-
Heater: 3.0 kW
-
Dimensions: 490 mm (L) x 120 mm (W) x 295 mm (H)
Quantity: Sold individually.
New system | Replaces existing systems |
BP8 | BP6013G1 and BP6013G3 |
BP9 | BP6013G2, BP2100G0 and BP2100G1 |
BP10 | BP21MS3B and BP214PBC |
